Wood Pellet Production Line solution
0.3-90T/H complete wood pellet production line is a combination of wood chipping, crushing, conveying, drying, pelletizing , cooling and bagging system.
All the wood pellet equipment may include wood chipper, wood pellet hammer mill, wood dryer, wood pellet press, wood pellet cooler, wood pellet screening machine, wood pellet bagging machine, etc.
According to the customer’s raw materials, it may also need to configure wood splitters, screening machines, shredders, etc. Not all of them are necessary, customer can choose according to your specific needs.
wood pellet production line solution
— Richi Machinery —
Through decades of experience, we have built up the expertise to offer comprehensive solutions for the pelleting of wood and other biomass. From grinding through to bagging, we can provide everything you need, including consulting and engineering.
We can offer you a comprehensive range of solutions for the pelleting of wood and other biomass from a single source, ensuring that all your processes work together, all while reducing interfaces for design, build and long-term support.
- Applicable customers: Our business is based on meeting the requirements of forestry groups, energy companies, wood industries, and industrial as well as financial investors in wood fuel pellet plants.
- Special applications: In addition to processing fuel pellets, this production line can also process wood cat litter, animal bedding. (pellet, sawdust, shavings and chips are available.)
- Solutions for different production scales:
0.2-90
Production（tons/hour）
2-12
Pellet size（mm）
Features and benefits
From small scale to Large capacity
According to the production scale and investment budget, we customize wood pellet production lines with different outputs for customers.
From pure wood waste to mixed agricultural and forestry waste
Our wood pellet production line not only processes pellets from wood waste such as sawdust, wood chips, stumps, logs, etc., but can also mix and add other types of agricultural waste such as straw, rice husks, palm shells, etc. However, if you want to ensure the quality of wood pellets, pure wood raw materials are the best choice.
From single system to complete
We not only provide complete wood pellet production line design and construction solutions, but also provide separate pelletizing system, crushing system, drying system, cooling system, storage system, packaging system and other design solutions.
Configuration optional
We provide customers with a variety of equipment configuration options, and customers can choose according to different needs and budgets. Different grades available. And the specified brand of electrical components can be configured.
Optional automation level
We provide fully automatic solutions, semi-automatic solutions, manual solutions, disconnection solutions, continuity solutions, etc. Customers can choose according to their investment budget.
High economic benefits
The wood pellet production line has low operating costs and high production efficiency, which can bring significant economic benefits to the enterprise. As a renewable energy source, wood pellets have a large market demand and have broad market prospects. The production line can also adjust product specifications and output according to market demand to meet the diverse needs of customers.
application of wood pellet production line
No matter it is a lumber mill, sawdust mill, wood chip mill, furniture factory or wooden pallet factory, no matter how big your processing scale is, as long as the output you need is above 300kg/h, we can provide you with a full set of wood pellet production line design and equipment configuration solutions, and provide full-cycle services for production lines such as manufacturing, installation, commissioning and maintenance.
fuel pellets
Energy companies
Timber Mill
Sawdust mill
power plant
Furniture Factory
Building Materials Factory
How to produce wood pellets from different raw materials?
As for the wood pellet production line, everyone knows that it is used to process wood pellets. However, when faced with wood raw materials of different sizes, irregular shapes, and different moisture contents, everyone has questions about “how to process these raw materials into wood pellets”. Below, RICHI MACHINERY will list “how to process wood pellets” for these raw materials one by one. (The difference between these raw material granulation is mainly in the raw material handling stage, starting from granulation, the process flow can be the same.)
how to make wood pellets from wood log?
If your raw material is wood log, you need to go through slicing, crushing, granulation, cooling, screening, packaging and other processes to get the finished pellets. If the log diameter is not particularly thick, you can use a slicer directly.
Your logs may be coarse or fine, may have bark, or may have high moisture content. Your raw materials may be all logs, or may be part logs and part sawdust…
Using logs as raw materials, formed by solidifying and extruding into high-density pellet fuel through pretreatment and processing. It can save energy and reduce emissions, will make good economic and social benefits. It can be widely used in biomass power plants, biomass steam boilers, household fireplaces, drying stove and biomass gasifier, etc, is an efficient and clean renewable energy source.
how to make wood pellets from wood chips?
Wood chips refer to the wood left over from logging, lumbering, processing, etc. and directional cultivation. The leftovers are solid fuels. We can process wood chips into wood pellets through cleaning, crushing, granulation and other processes; we can also process different wood raw materials into wood chips for a variety of uses.
how to make wood pellets from sawdust?
No matter what your raw materials are, before the pelletizing process, all raw materials must be reduced to sawdust of about 3mm. If your raw materials are sawdust, then the equipment cost of your pellet production line will be very low, because you can save the investment cost of crushing equipment.
how to make wood pellets from shavings?
Wood shavings are larger than sawdust, produced by scrapers and / or other woodworking tools, usually come out in a spiral shape. Our equipment can process shavings for animal bedding, or directly use pellet equipment process shavings into wood pellets through processes such as crushing and granulation.
how to make wood pellets from Yard Waste?
Typical types of yard waste include grass clippings, leaves, branches, tree trunks, cut flowers, bushes and shrubs, festive plants, etc. The focus of the pellet production line design for this type of waste is on the raw material handling and pulverizing system because of the variety of materials. The process after crushing is the same.
how to make pellets from Furniture waste?
Reducing furniture waste is becoming a growing concern in the world. Among them, wooden waste furniture is a very good raw material for wood pellets. Due to the different shapes of the raw materials and the presence of impurities such as nails, it is necessary to add iron removers and cleaning equipment while crushing.
how to make wood pellets from tree stump?
Generally speaking, for raw materials such as tree stumps and roots, it is necessary to add shredders, wood hammer mills, drum screens and other equipment to the wood pellet production line to remove impurities while crushing and ensure pellet quality.
how to make wood pellets from Wooden Pallets?
Waste pallets are a special type of wood waste. In the design of this type of wood pellet production line, a correctly specified pallet shredder will enable the conversion of bulky pallet waste into biomass pellet fuel, that is uniform and easy to handle.
how to make wood pellets from wood board?
Panel board was the first main off-take for recycled wood fibre and remains a major customer for today’s wood recyclers. There are many ways to crush this type of raw material. We will configure suitable crushing equipment based on production scale.
how to make wood pellets from Demolition/construction wood?
However, 10-15% of all timber in new construction goes to the waste stream, with timber from demolition contributing to 10% of all landfill waste globally. The variety of these raw materials requires a customized raw material handling system.
RICHI MACHINERY
video Of wood pellet production line
We have a lot of wood pellet production line operation site videos to share with you. Below are some of our latest project videos. If you are interested in our wood pelleting line projects, feel free to contact us for detailed information!
RICHI MACHINERY
how to manufacture wood pellets? standard wood pellet production process design
The standard process of wood pellet production line is: crushing – cleaning – drying – granulation – cooling – screening – packaging. In fact, the process design of wood pellet production line is customized according to customer needs, raw materials, plant structure, investment budget and other factors.
Some customers need a continuous fully automatic pellet production line; some customers’ raw materials are dry and do not need a drying system; some customers’ raw materials are 2-3mm in size and are clean and free of impurities, so there is no need for crushing and cleaning systems; some customers have a low investment budget and only need a separate pelletizing system; some customers need to use a ton bag scale to package pellet products, and some customers need silos to store finished products…
Although customers have different needs, in the past few decades, we have met the wood pellet processing needs of every customer and enabled their production lines to achieve efficient and high-profit operation.
1. Crushing system
Shredding, slicing, crushing, wood peeling, wood splitting, wood pallet crushing, etc. According to the different raw material sizes and impurities, we will combine these equipment into different crushing systems and process them into 3mm sawdust to meet the feed specifications of the wood pellet mill.
2. cleaning system
Most raw materials contain impurities, such as dirt, nails, etc. The cleaning section may be placed before or after crushing. This needs to be determined according to the actual situation of the raw materials. In a wood pellet production line using multiple raw materials, sometimes a multi-stage cleaning section is required.
3.Proportion & mixing
When customers use different types of raw materials, or use the same type but with different physical properties, in order to ensure the quality of the pellets, it is sometimes necessary to add this section. Of course, there are also very few customers who use adhesives. This requires a batching and mixing system to ensure the uniformity of the material.
4. Drying system
Before pelleting, the raw materials must be dry. Depending on the raw materials used, the moisture content should be between 13% and 15%. In order for the pelleting process to work properly, the raw materials should have the right amount of moisture. Drying the raw materials to the right amount of moisture is crucial for making high-quality pellets.
5. pelleting system
The diameter of the processed finished pellets is 2-12mm. RICHI’s MZLH series wood pellet press can process various wood pellets. The transmission part uses high-quality imported bearings and has a number of innovative designs on the ring die, which improves the hardness of the ring die, prevents cracking, and further enhances production capacity and life .
6.cooling system
Granulation, cooling, weighing and packaging. The temperature of the granules after cooling is generally not higher than 5°C from room temperature, and the moisture content of the granules after cooling is less than 10%, which is convenient for storage.
7. screening system
After pelletizing, in addition to qualified wood pellets, some unqualified particles and some dust will be produced. This requires the use of screening equipment to separate qualified and unqualified products. Qualified wood particles directly enter the packaging section, and unqualified particles need to be re-pelletized.
8. packaging system
RICHI can adjust the packaging equipment according to the customer’s requirements for finished product packaging. It can also be stored in bulk or in steel silos.
In addition to the above main pellet production line systems, according to process needs and customer needs, we can also configure Conveyor system (essential), raw material storage system (optional), semi-finished product storage system (optional), pellet storage system (optional), pellet bulk system (optional), dust removal system (necessary), etc. for customers.
In addition, we always prioritize plant safety and therefore offer various safety technologies, such as an active fire system with spark detection and extinguishing and put large effort in designing sophisticated dust aspiration systems.
raw materials Requirements of wood pelletizing technology
If you want to process wood pellets, if you want to complete an efficient and durable wood pellet production line, you need to determine several important factors when designing the production line: the type of raw materials, the size of the raw materials, and the moisture content. These factors will affect the design of the production line’s crushing system and drying system.
Raw material type
Your raw materials can be various wood raw materials, and you can use one, two or more raw materials of different sizes and moisture; your raw materials can be a combination of wood waste and agricultural waste, and you can also use raw materials of different sizes and moisture. The crushing system and drying system need to be determined according to the actual raw materials.
Raw material size
The raw material size here refers to the size of the raw material before entering the granulation section. Your raw material can be in various shapes, but before entering the granulator, you need to use a combination of crushing equipment to make your raw material size reach about 3mm.
What is the moisture of your main/primary raw materials?
If your raw material moisture =< 20%, then don’t need drying system in your design. If your raw material moisture > 20%, need drying system in your wood pellet production line design. If you want to save money, natural drying is also an economical option.
Customized wood pellet production line design
— Richi Machinery —
We customize and design different biomass pellet production line solutions for global customers according to different outputs, raw materials, and plant structures. Below we only show you some of our recent typical designs. If you have biomass pellet processing needs, please feel free to contact us to obtain pellet production line design solutions and corresponding full equipment quotes.
1 ton per hour wood pellet production line design
Raw materials used: Trunks, branches, Veneers, planks, wood chips, sawdust, etc.
Source of process diagram: This process design comes from our Poland wood chips pellet production line project
Process flow: Conveying system – drying system – pelleting system – cooling system – screening system – Packaging system
Main equipment used: sawdust pellet machine, wood dryer, screening equipment, cooling machine, packaging equipment, conveyors, cyclone, etc.
3-3.5 tons complete wood pellet production line for wood log and board
Raw materials used: wood logs, boards
Source of process diagram: This process design comes from our canada wood log pellet production line project
Process flow: Conveying system – drying system – pelleting system – cooling system – screening system – Packaging system
Main equipment used: sawdust pellet machine, wood dryer, screening equipment, cooling machine, packaging equipment, conveyors, cyclone, etc.
2-2.5 tons wood pellet production line for sawdust
Raw materials used: wet wood sawdust
Source of process diagram: This process design comes from our German sawdust pellet production line project
Process flow: Conveying system – drying system – pelleting system – cooling system – screening system – Packaging system
Main equipment used: sawdust pellet machine, wood dryer, screening equipment, cooling machine, packaging equipment, conveyors, cyclone, etc.
8-10 tons industry wood pellet production line for Furniture factory waste
Raw materials used: Wood chips, wood blocks, Wood scraps
Source of process diagram: This process design comes from our USA forest waste pellet production line project
Process flow: Crushing system – Cleaning & Dust Removal System – drying system – Silo Storage Systems – pelleting system – Cooling system – screening system – Packaging system – Container conveyor system
Main equipment used: wood hammer mill crusher, wood pellet mill, wood drying machine, screening equipment, cooling machine, packaging equipment, Sawdust storage silo, cyclone, ton bag scale, bucket elevator, scraper conveyor, belt conveyor, etc.
0.5-0.7 rice husk wood pellet production line
Raw materials used: Wood chips, Offcuts, rice husks, etc.
Source of process diagram: This process design comes from our Indonesia fuel pellet plant project
Process flow: Crushing system – drying system – pelleting system – Cooling system – screening system
Main equipment used: crusher, biomass fuel pellet machine, biomass drying machine, screening equipment, cooling machine, Cyclone dust collector, conveyor, etc.
4-5 tons per hour wood pellet production line for Forest waste
Raw materials used: Logs, wood chips, sawdust, branches, etc.
Source of process diagram: This process design comes from our Austria wood pellet production line project
Process flow: cleaning system – chipping system – Crushing system – drying system – pelleting system – Cooling system – screening system – Finished product bulk system
Main equipment used: Slicer, drum screen, wood crusher, wood dryer, wood granulator machine, wood pellet cooler, vibrating screen, bulk bin, belt conveyor, scraper conveyor, cyclone, etc.
8-10 tons per hour large capacity wood pellet production line design
Raw materials used: Wood waste
Source of process diagram: This process design comes from our Bengal wood pellet production line project
Process flow: chipping system – Crushing system – drying system – pelleting system – Cooling system – screening system – Packaging system
Main equipment used: chipper machine, hammer mill crusher, biomass pellet making machine, biomas dryer machine, screening equipment, cooling machine, packaging equipment, cyclone dust collector, conveyor, etc.
16-20 tons per industrial scale hour wood pellet production line for sale
Raw materials used: Wood and bamboo waste
Source of process diagram: This process design comes from our Venezuela fuel pellet production line project
Process flow: chipping system – Crushing system – drying system – pelleting system – Cooling system – screening system – Packaging system
Main equipment used: chipper machine, hammer mill crusher, biomass pellet making machine, biomas dryer machine, screening equipment, cooling machine, packaging equipment, cyclone dust collector, conveyor, etc.
cost to start complete wood pellet production line
— Richi Machinery —
The wood pellet production line cost is usually between 20,000 and 3 million US dollars. This investment amount refers to the price of a full set of equipment. The following is a reference to the investment range of wood pellet production lines with different outputs.
In addition to the investment in a full set of production line equipment, it is also necessary to consider civil engineering costs, water and electricity energy costs, raw material costs, labor costs, construction costs, etc. If you want to get guidance on the investment and construction of a wood biomass pellet plant, feel free to contact RICHI for technical support!
| Production Scale | Production cycle | Installation cycle | Investment Cost(USD) | Profit cycle |
| 0.2-0.3 T/H | 7-20 Days | 7-15 Days | 20,000-140,000 | 1-3 Year |
| 0.3-0.5 T/H | 10-20 Days | 7-15 Days | 28,000- 160,000 | |
| 1.0-1.2T/H | 20-30 Days | 15-20 Days | 39,000-220,000 | |
| 1.5-2.0T/H | 20-30 Days | 15-20 Days | 56,000-270,000 | |
| 2.5-3.0T/H | 20-30 Days | 15-30 Days | 78,000-350,000 | |
| 3.0-4.0T/H | 20-40 Days | 20-30 Days | 95,000-430,000 | |
| 5.0-6.0T/H | 20-40 Days | 20-40 Days | 160,000-570,000 | |
| 6.0-8.0T/H | 20-40 Days | 30-60 Days | 190,000-690,000 | |
| 10-12T/H | 30-50 Days | 30-60 Days | 280,000-1,100,000 | |
| 12-15T/H | 30-50 Days | 30 -60 Days | 470,000-1,430,000 | |
| 20-30 t/h | 40-60 Days | 40 -60 Days | 500,000-2,000,000 | |
| 30-40 t/h | 40-60 Days | 50 -90 Days | 550,000-2,200,000 | |
| 40-50 t/h | 40-80 Days | 60 -90 Days | 680,000-2,500,000 | |
| About the profit : | ||||
| 1. Depends on the customer’s wood pellet price and raw material price, which is determined by the difference of resources in different regions; | ||||
| 2. Depending on the operating cost of the equipment, it is composed of worker wages, electricity costs, and wearing parts costs, among which worker wages and electricity fees are relatively fixed, and the cost of wearing parts is related to the configuration and operation of the entire wood pellet equipment; | ||||
| 3. It depends on the customer’s management of the complete wood pellet production line. Responsible managers & skilled production line equipment operators are the foundation for the smooth operation and high returns of any wood pellet plants. | ||||
wood Pellet production line Engineering solutions provider
Our focus is to bring your performance forward. Our expertise in sustainable energy production is at your disposal. Get in touch with our specialists through our website or the link below.
equipment for wood pellet production line
— Richi Machinery —
We will configure all the equipment suitable for a complete set of wood pellet production lines for global customers according to different raw material types, ratios, raw material sizes and moisture. And all of these are designed, manufactured, installed and trained by us.
In addition to traditional wood slicers, crushers, dryers, pelletizers, coolers, screeners, balers, conveyors, cleaning equipment, dust removal equipment and other main equipment, we also provide the latest wood shredders, customized storage silos and other equipment to meet various wood pellet processing needs around the world.
debarking machine
Wood splitter machine
wood pellet production line cases
— Richi Machinery —
RICHI wood pellet production lines are making new industry history. At present, our wood pellet production lines have been exported to more than 80 countries including the United States, Germany, Poland, Indonesia, Australia, New Zealand, Austria, Mexico, Ecuador, Russia, Kazakhstan, Denmark, Turkey, South Africa, Ghana, Spain, Bulgaria, Serbia, Bangladesh, Uruguay, Argentina, Brazil, etc., and more than 300 wood pellet processing projects have been built.
4T/H wood pellets production line in australia
- Annual output：10000 tons (833 tons per month, 33 tons per day )
- Raw materials: wood waste
- Project construction period: 1 month
- Project construction land: 2350m²
- Total pellet line machines price 430,000 USD
- Process flow:Raw material chipping → crushing → impurity removal → screening → drying→ pelletizing → cooling → packaging → storage → delivery
| No | Main Equipments | Model | Quantity |
| 1 | Commercial wood chipper | JLBX-218 | 1 |
| 2 | Wood hammer mill crusher | SFSP66*80 | 2 |
| 3 | Good selling drum rotary dryer | ф2400*100000 *3 Layer | 1 |
| 4 | Biomass wood pellet granulator machine | MZLH-520 | 2 |
| 5 | Cooling machine | SKLN17*17 | 1 |
| 6 | Vibrating screener | TDZS80 | 1 |
| 7 | Packing machine | DCS-50 | 1 |
| More auxiliary equipment：Bucket elevator*TDTG40/23, Belt conveyors*PDS650, Buffer bin*2m³, Cyclone*ф1000, Draught fan*9-19-5.6a, Pneumatic three-way*YSTZ22A, Lower level indicator* KF1500, U-screw conveyor*TLSSU32, Anti-caking equipment,etc. The RICHI biomass wood pellet production lines can be combined according to different process requirements and various types of equipment to meet different customers’ needs. | |||
0.4T/H wood pellet production line in poland
- •Annual output：1000 tons (83 tons per month, 3 tons per day)
- •Raw materials: wood scraps, crop waste (rice straw, peanut shell, etc.)
- •Project construction period: 1 month
- •Project construction land: 1231m2
- •Total machines price 40,000 USD
- Process flow: Raw material chipping & crushiing-screening-crushing-drying-pelleting-packaging
| No | Main Equipments | Model | Quantity |
| 1 | Wood shredder chipper | JLBX-215 | 1 |
| 2 | Wood hammer mill for wood chips | SFSP66*60 | 1 |
| 3 | Biomass wood chips rotary dryer | ф1200*120000 | 1 |
| 4 | Wood waste pellet making machine | MZLH-320 | 1 |
| 5 | Vibrating screener | TDZS63 | 1 |
| 6 | Packing machine | DCS-50 | 1 |
| 7 | MCC Control Center ;Mimic control panel | / | 1 |
| More auxiliary equipment：Buffer bin*2m³, Cyclone*ф1000, Pulse dust collector*TBLMa.36b, Draught fan*9-19-5.6a, U-Screw conveyor*TLSSU30, Bucket elevator*TDTG40/23, Storage bin*4m³, Anti-caking equipment, Bucket elevator*TDTG36/18,etc. The RICHI biomass wood pellet production lines can be combined according to different process requirements and various types of equipment to meet different customers’ needs. | |||
10 t/h wood pellet production line in brazil
- Annual output：25000 tons (2083 tons per month, 83 tons per day)
- Raw materials: wood log, wood chips, wood sawdust
- Project construction period: 2 months
- Project construction land: 5333m2
- Total pellet factory machines cost 630,000 USD
- Process flow: Raw material wood Chipping-Crushing-Drying -Sieving-Pelleting-Cooling-Packing
| No | Main Equipments | Model | Quantity |
| 1 | Wood chipper crusher | JLBX-218 | 2 |
| 2 | High capacity wood pulverizer | SFSP66*80 | 2 |
| 3 | Biomass wood chips rotary dryer | ф2400*100000 *3 Layer | 2 |
| 4 | Ring die wood pellet press machine | MZLH-520 | 4 |
| 5 | Cooling machine | SKLN20*20 | 1 |
| 6 | Vibrating screener | TDZS80 | 1 |
| 7 | Packing machine(with belt and sewing machine) | DCS-50 | 1 |
| More auxiliary equipment：Belt conveyors*PDS650, Buffer bin*2m³, Cyclone*ф1000, Pulse dust collector* TBLMa.36b, U-screw conveyor*TLSSU32, Bucket elevator*TDTG60/23, Storage bin*20m³, Anti-caking equipment, Belt conveyor*PDS-500, etc. The RICHI biomass wood pellet production lines can be combined according to different process requirements and various types of equipment to meet different customers’ needs. | |||
28T/H wood Pellet production line in USA
- Annual output：70000 tons (5800 tons per month, 230 tons per day)
- Raw materials: wood waste, rice husk
- Project construction period: 3 months
- Project construction land: 7500m²
- Total equipments cost: 1,150,000 USD
- Production process: Wood waste-chipping-crushing-drying-pelleting-finished product
| No | Main Equipments | Model | Quantity |
| 1 | Industrial use heavy duty drum wood chipper | JLBX-2113 | 2 |
| 2 | Rice husk hammer mill | SFSP-Y60132Q1 | 4 |
| 3 | Biomass rotary dryer | ф2400*100000*3 Layer | 4 |
| 4 | Wood rice husk pellet press machine | MZLH-520 | 12 |
| 5 | MCC Control Center ;Mimic control panel | / | 1 |
| More auxiliary equipment：Storage bin*4m³, Silencer for hammer mill*XY-132Q1, Connection piping system*FWY-350, Cyclone*SK1400, Pulse dust collector*FZMC6*12, Screw conveyor (air locked)*TLSS40, U-Screw conveyor*TLSSU40, etc. The RICHI biomass wood pellet production lines can be combined according to different process requirements and various types of equipment to meet different customers’ needs. | |||
5 T/H wood pellet Production Line in Australia
2-2.5 T/H wood pellet Production Line in Germany
2-3 T/H wood pellet Production Line in Canada
8-10 T/H wood pellet Production Line in Argentina
2-2.5 T/H wood pellet Production Line in Romania
5 T/H wood pellet Production Line in Turkey
8-10 T/H wood pellet processing Line in New Zealand
3-4 T/H wood pellets making Line in South Africa
6-8 T/H wood pellet making Line in Russia
8-10 T/H wood pellets Line in Venezuela
3 T/H wood pelletizing Line in Kazakhstan
1-2 T/H wood pelleting Line in Pakistan
Whether you wish to build or expand a wood pellet production line, RICHI can design, manufacture, supply, and optimize the machinery for producing high-quality wood pellets. Our solutions are always backed by technical consulting, engineering, installation, and aftermarket service by our global service centers.
customer stories
You should be very interested in the projects we have done. Below, RICHI will introduce 6 projects in detail. I hope you will have a deeper understanding of the construction of wood pellet production lines.
10-12 t/h wood pellet production line in Brazil
The customer is an energy company from Brazil. In 2022, it plans to construct a 30,000-ton wood pellet plant in the municipality of Butiá, Brazil. Finally, the customer signed an agreement with RICHI Machinery in March 2023 to purchase a full set of wood pellet production line equipment.
The project uses the existing 1# plant, 2# production plant, comprehensive building and guardhouse, covering an area of 5795m2, relying on local power supply and water supply and drainage projects.
The customer plans to sell its pellets, made from eucalyptus, into the domestic and export markets. When operational, it’s expected the plant will employ 12 and create 60 indirect jobs. In June 2023, the company has secured an environmental license by the city.
wood pellet production line process design
- Chipping/crushing: Large raw materials such as waste wood are crushed into fine materials, and then transported to the hammer mill for crushing. Small raw materials such as bamboo sawdust, wood shavings, sawdust, etc. are directly fed into the hammer mill.
- Screening: The fine raw materials after crushing are transported to the screening machine for screening, and qualified crushed materials and metal debris such as iron nails and iron wire contained in the original raw materials are screened out.
- Drying: This process dries the material to a moisture content of 15%. The heating temperature of the project’s biomass thermal oil furnace is 110℃, and the ignition point of wood is 250~260℃.
- Granulation: The dried biomass powder is transported to the biomass pellet mill machine for pressing.
- Cooling: The pelletized biomass pellets are transported to the cooler for cooling to ensure that the biomass pellets remain dry and intact during the cooling process to achieve the molding effect. The cooled pellets enter the screening equipment to screen out unqualified pellets.
- Packaging: The qualified products are packaged by the packaging machine.
7-8 t/h wood pellet production line in south Korea
The client is a furniture company in South Korea. Due to development needs, it invested in this 8t/h biomass wood pellet production line in South Korea project.
In this project, RICHI Machinery provides a full set of equipment for a 20,000-ton wood pellet production line, with an investment of about US$450,000. The raw materials used in this project are all from the processing waste of its furniture factory, that is, wood scraps. When the scraps are insufficient, logs will be used directly. Therefore, according to customer needs, we also configure slicers for customers.
The labor quota of this project is 10 people; there is no production at night; the annual production days are 300 days. This project only has an employee canteen and no dormitory.
wood pellet production line process design
- Crushing: After the raw materials arrive at the site, some of them need to be crushed, and then loaded by a loader and lifted into the silo (the pelletizing extrusion compression equipment can reach about 100℃-120℃, and its own high temperature can be used to remove moisture);
- Storage: The silo is equipped with a level meter to control the loading of the elevator to prevent the elevator from stopping after the silo is full;
- Cleaning: A drum screen (with a magnet inside) is set at the bottom of the silo. Because some wood chip raw materials contain iron tools such as iron nails, iron impurities are removed to ensure product quality.
- Granulation: The cleaned raw materials enter the wood granulator for granulation.
- Cooling and screening: After being made into granules, they are lifted into the silo by a belt conveyor and cooled and screened by an air-cooled cooling unit. After screening, the particles that do not meet the specifications are recovered and returned to the silo.
- Packaging: Qualified pellets are loaded by bucket elevators to the silo to be packaged, packaged by computer quantitative packaging machines, and then stored and sold in warehouses.
4-5 t/h wood pellet production line in Pakistan
Pakistan wood pellet line is used for making 8mm wood pellets. From design, construction, civil engineering, motors to wood pellet making machine are all contracted by RICHI. The project has a staff capacity of 6 people, with a single shift of 8-16 hours and an effective working time of 300 days per year. After the completion of the project, the annual output of biomass pellets will be 20,000 tons.
This project uses logs, sawdust, wood chips and branches as production raw materials, and processes 20,000 tons of biomass pellets annually. Therefore, the project has a good industrial foundation and broad market prospects, and has good economic, social and environmental benefits.
wood pellet production line process design
- Slicing section: The logs are processed into wood chips, the size is 20-30mm, and the thickness is about 5-10mm, and then enters the processing in the subsequent section.
- Crushing section: After crushing by the crusher, the material is conveyed and discharged by the negative pressure suction of the fan.
- Drying section: three-layer drum dryer, the moisture content of wood chips after drying is about 13-18%. The diameter of the drum is 3.45m, the length is 11.6m, the power is 22kw, and the designed output is 6T per hour (40% moisture content of the raw material).
- Pelletizing section: The diameter of biomass pellets is 6-10mm optional. The model of the wood biomass pellet mill machine is MZLH420, the power of the host is 110kw,.
- Cooling and packing section: It is used to reduce the temperature of the pellets and the moisture of the pellets. The temperature of the pellets after cooling is generally not higher than room temperature 5℃, the moisture of the pellets after cooling is about 8-10%.
- Packaging section: Packaging can be based on the customer’s local sales needs, choose a suitable packaging scale to facilitate customers to sell products, usually there are two specifications of small bags and ton bags, the packaging specifications of small bag packaging scales are: 20-50kg/bag, and the packaging specifications of ton bag scales are: 500 -1000kg/bag.
5-6 t/h wood pellet production line in Russia
This is our 32nd pellet production line project exported to Russia and the 40th biomass pellet production line we have established in CIS countries. This project is a 5-6t/h straw wood pellet production line with an ultimate annual output of 30,000 tons. The investment amount of this project is US$280,000.
The project uses wood as the main raw material and straw as the supplementary raw material, and produces 30,000 tons of biomass fuel pellets annually through processes such as crushing-granulation-cooling-bagging. The project has a labor quota of 8 people. adopts a two-shift, eight-hour work system per day, and 300 working days per year.
wood pellet production line process design
- Screening：Screen the raw materials (sawdust, straw) to remove the impurities (large particles of sand and gravel).
- Crushing and pulverizing： Purchase raw materials (the raw materials used in this project are dry raw materials, and the moisture content of raw materials is ≤10%), and manually put the raw materials into the crusher for crushing. The materials after preliminary crushing are then sent to the crusher for crushing through a bucket car. Some of the raw materials contain iron nails, which need to be removed. The project crusher and crusher are equipped with iron removal devices (magnets).
- Drying：The moisture content of the raw and auxiliary materials entering the site is about 40%. Drying can remove some moisture, but the process requires the moisture content to be below 20%, so the raw materials need to be dried. The dryer used in this project is an electric dryer, which can effectively reduce the moisture content of the raw and auxiliary materials to below 20%.
- Pelleting: This project conveys the crushed powder through a belt to the hot pressing biomass pellet machine, and presses it into granules under high pressure.
- Natural cooling: The molded product is transported to the stacking table by the elevator. After being lifted by the elevator, it is naturally cooled in the elevator funnel.
- Packaging: When the temperature drops to room temperature, the product is packaged and stored for sale.
8 t/h wood pellet production line in Germany
This is a 8t/h ce wood pellet line project we built in Germany. The main raw and auxiliary materials of the project are wood scraps, three leftovers (wood shavings, sawdust powder, waste wood boards, branches and other leftovers), etc. This is the fifth wood pellet production line project we have undertaken in Germany.
The customer invested 650,000 US dollars to engage in the production and processing of biomass pellet fuel, and planned to produce 20,000 tons of biomass pellet fuel annually. The project has 10 employees, with day shift production (8-16 hours), and 300 working days per year. The water consumption of this project is 150t/a and the power consumption is 200,000 kwh/a.
wood pellet production line process design
- Feeding section: After the raw materials enter the wood pellet plant, they are manually discharged to the raw material area.
- Crushing section: The wood pellet plant raw materials are transported by the belt conveyor to the wood pellet hammer mill crusher for crushing.
- Granulation section: The crushed material is sent from the hopper to the extrusion bin of the biomass wood pellet machine, and the crushed material is squeezed into the inner hole of the ring die through the roller.
- Inspection, measurement, packaging and warehousing section: The products are packaged and put into the warehouse after manual inspection, for sale.
15 t/h wood pellet production line in Thailand
This is a large-scale wood pellet line project with an output of 15 tons per hour, located in Thailand. The project uses waste wood and straw as the main raw materials. According to the needs of customers, we have reserved a 5t/h palm waste crushing system for them. When the wood or straw raw materials are insufficient, palm shells or palm fruit bunches are directly used as supplements.
The project customer is a wood chip factory established on December 4, 2022. Based on the prospects of biomass pellets and the existing sufficient waste resources, this customer invested in the construction of a biomass wood pellet processing project using straw, waste wood, wood scraps, waste sawdust, etc.
wood pellet production line process design
- Crushing and pulverizing: Mainly crushes the waste wood with large size (diameter 1-2 meters, moisture content 30%-40%) into small particles (diameter <10cm). The pulverizing process mainly crushes the small particles further.
- Drying: Since the moisture content of some raw materials cannot meet the requirements, it is necessary to use drying machine for direct drying.
- Granulation: The dry material is transported to the silo of the wood pellet mill machine for extrusion molding.
- Packaging and warehousing: Qualified products from the wood biomass pellet machine are mechanically packaged and sealed, and the packaged products are manually put into the warehouse.
We care about what you need
RICHI designs and builds key process machines, as well as complete wood pellet production line solutions for the global renewable energy sector. Our business is based on meeting the requirements of forestry groups, energy companies, wood industries, and industrial as well as financial investors in biofuel pellet plants.
Solutions for different production volumes
We customize wood pellet production lines with different processes and designs for different production scales of wood pellet processing. You can use our production lines and equipment to process any fuel pellets, cat litter pellets, animal bedding pellets and other special types of pellet products, such as carbon pellets, rat poison pellets, snail poison, air purifier pellets, etc.

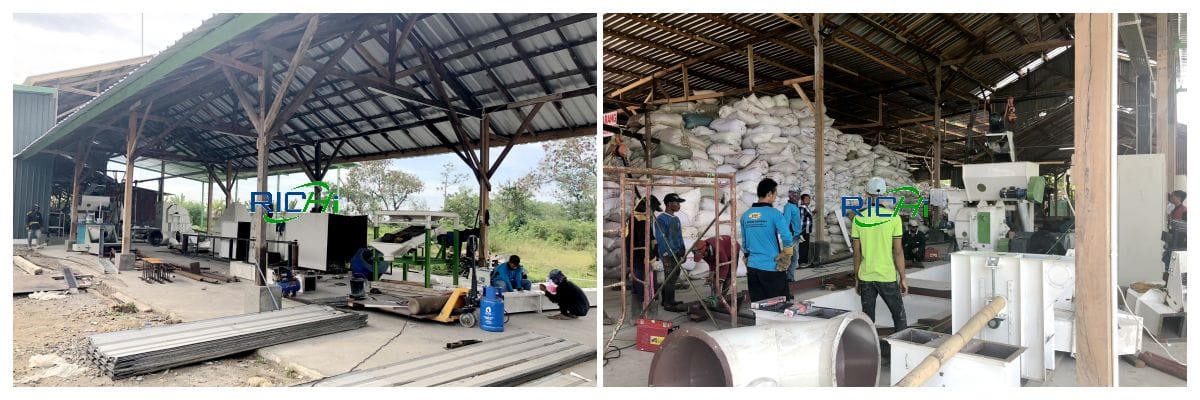

small wood pellet plant
Mainly for small wood pellet processing, the production output is between 300-1000 kg per hour.
wood pellet line
We have many projects for reference for the processing of 1-2 tons per hour of wood pellets.
wood pellet processing equipment
The wood pellet business with 3-4 tons per hour is already a production scale that can generate profits.
wood pellet processing plant
Based on customer needs and actual working conditions, we provide a more reliable 4-5t/h wood pellet processing plant with professional technology.
wood pellet production plant
RICHI is committed to global complete 6-7t/h wood pellet production plant solutions, including chippers, crushers, dryers, granulators, coolers, screeners, etc.
wood pellet making equipment
7-8T/H wood pellet making plant includes a series of equipment such as crushing and pelleting, forming a complete closed industrial chain of pelleting.
wood pellet manufacturing equipment
RICHI’s 8-10t/h wood pellet manufacturing plant solution truly realizes a complete set of sustainable products in the field of wood pellet processing.
wood pellet factory
12-15T/H biomass wood pellet actory solution covers sawdust, wood chip, log pellet line, etc., targeting the global wood pellet market.
wood pellet manufacturing plant
The 15-20t/h pellet plantl can meet the wood pellet processing needs of various scales, various raw materials, and various plant spaces. The equipment has high efficiency, safety and stability.
wood pellet making line
RICHI is committed to creating complete sets of 20-30t/h wood pellet making line solutions for customers, with projects covering major markets such as Indonesia, the United States, Canada, and Germany.
turnkey wood pellet mill
In response to global energy demand, RICHI provides 30-40t/h turnkey wood pellet mill plant solutions, and can flexibly configure a series of equipment according to customers’ actual conditions.
large wood pellet mill
40-50T/H large wood pellet mill plant meets the wood pellet production needs of different fields such as biomass fuel pellet factories, lumber factories, sawdust factories, and furniture factories, etc.
● RICHI MACHINERY
Excellent service around the world
With specialist manufacturing and service locations all around the world, our support engineers and technicians are never far away, ready to help you solve issues or take a proactive role in improving the overall performance of your wood pellet production line. You can get a general idea of our services through the following content:
● Consulting
Customer Consultation
We want to have a deep understanding of your industrial process, to know your exact needs of feed, wood, biomass, fertilizer or other pellet processing.
● Design
wood Pellet line Design
Based on your unique situation and industrial process, we will tailor complete pellet plant you need, and inform you of every additional detail that could facilitate operation, minimize total cost.
● Manufacturing
Equipment Manufacturing
The critical components of the of the complete wood pellet equipment are built in our own workshops in Asia. Additional equipment is manufactured by our worldwide network of reliable partners.
● Testing
Quality Inspection & Testing
Before leaving the factory, all equipment will be inspected by the quality inspection department. We can also provide customers with testing services from a single machine to a wood pelleting system, and provide you with real actual data for “worry-free use.”
● Delivery
Equipment Delivery
In equipment boxing and packaging, we adopt professional packaging and modular solutions to ensure the safe and non-destructive delivery of pellet line equipment.
● Installation
Installation & Commissioning
Whether you choose your own subcontractor for the erection phase or you want to install everything together with us, a Richi supervisor will be around to make sure everything is mounted in a safe and thorough way.
● Training
Staff Training
We provide comprehensive training for the technicians of each wood pellet production line project. We can also continue to provide support for the technicians during latter project operation.
● After-sales
Project Follow-Up
When everything is up and running our Richiers will help you further whenever needed. We are ready to answer your call 24/7.We’ll also visit you regularly to learn about your needs.
FAQs of wood pellet production line construction
A wood pellet production line project, from preliminary research to later construction, you will encounter various problems. If you have any questions about the construction of a wood pellet production line, whether it is about the process, investment or cost, feel free to contact us, our consultants will give you professional technical support and provide detailed solutions!
How to build a complete wood pellet production line?
The specific steps and key elements of building a wood pellet production line are as follows:
- Raw material supply: First, a stable supply of raw materials needs to be ensured. The choice of raw materials should have market competitive advantages, such as wood waste, crop straw, etc., which are not only low-cost but also stable in supply.
- Equipment selection: Choose the right equipment according to the type of raw materials. For example, a ring die pelletizer is the best choice for wood pellet processing; raw materials with high moisture content need to be equipped with a dryer, while large-sized raw materials need to be equipped with equipment such as shredders and slicers. Choose equipment with good configuration and good after-sales service, and it is best to provide training.
- Site selection: It is very important to choose a suitable site, and it is necessary to ensure that electricity and water supply are convenient. Industrial parks can provide more convenience and compliance, while remote suburbs can save costs. Compliant locations should be selected for long-term development.
- Production line planning: The production line should be reasonably planned to ensure that it passes the safety and environmental assessment and achieves dust-free and safety. Automation and closed conveying systems can reduce labor costs and suppress dust.
- Environmental issues: Before building a pellet plant, environmental issues must be addressed, including equipment dust treatment, noise reduction, and safety assurance2.
- Plant requirements: The plant height should be no less than 7.5 meters, the ground should be hardened by 30 centimeters, and sufficient operating space and storage space should be left. The working environment should be appropriately advanced and automated, and dust removal equipment should be added.
- Production management: Standardized production management, reasonable arrangement of personnel positions and production processes, to ensure output and quality. Automated feeding systems and closed storage systems can reduce personnel costs and improve safety3.
- Sales channels: Reasonable use of sales channels, such as boiler usage information provided by environmental protection departments, and publicity through platforms such as Douyin.
- Fund utilization: Reasonable planning of production, allocation of supply and raw material storage, to ensure the effective use of funds.
Through the reasonable arrangement of the above steps and elements, the wood pellet plant can be effectively built and managed to ensure its long-term stable operation.
I have a lot of wood waste, but I want to process it into horse bedding, rabbit bedding and other animal bedding. Can you do it?
Yes. RICHI MACHINERY provides proven, effective and complete solutions for wood handling and processing. The processed sawdust, shavings, chips and other products can be used for various animal bedding.
The scope of supply can vary from complete plants to individual equipment delivery.
RICHI is very experienced in project management, ensuring deliveries that are on-time and on-budget, and produce excellent economic results for energy producers.
Is the smallest wood pellet production line you can offer 300 kg? How about 200 kg?
Depending on your actual raw material, in some projects, if our smallest wood pellet machine with an hourly output of 300-500kg/h is used, the processed pellet output may be 200-300kg/h. However, most projects can reach an output of more than 300 kg. If you want to confirm whether your raw material is in this case, you can contact us directly online and our engineers will give you detailed information.
Who we are
RICHI Machinery is one of the world’s leading suppliers of technology and services for the animal feed, aqua feed and pet food industries, also the largest pellet production line manufacturer in China.
Since 1995, RICHI’s vision to build a first-class enterprise, to foster first-class employees, and to make first-class contributions to society has never wavered.
In the past three decades, we have expanded our business to a wide range of areas, including animal feed mill equipment, aqua feed equipment, pet feed equipment, biomass pellet equipment, fertilizer equipment, cat litter equipment, municipal solid waste pellets equipment, etc.
1995
RICHI Established
2000+
Serving More Than 2000 Customers
120+
RICHI Employees
140+
Exported To 140 Countries
