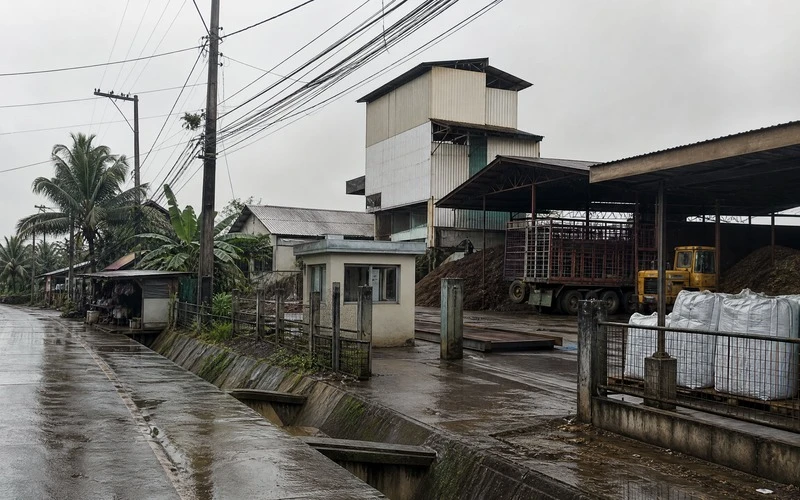

Chicken Manure Powder Fertilizer Plant in the Philippines

RICHI MACHINERY

A Supplier Network Matters More Than One Large Flock

A regional supplier network is more important here than one impressive flock number. Philippine poultry production includes large commercial broiler and layer populations, but an 8,000 T/A fertilizer business still needs collection contracts, transport schedules and manure-condition records. The customer therefore does not claim that one 80,000-bird farm supplies the project.

Several layer and broiler operations contribute material, which reduces the risk that a flock change or farm shutdown interrupts fertilizer production.

Layer manure and broiler litter are logged separately because they behave differently. Layer manure can arrive wetter and with little bedding. Broiler litter may already contain rice hulls or wood shavings, giving the compost mix more structure and dry matter. The plant buys and handles the material by actual condition rather than paying for every truck as if all “chicken manure” had the same moisture, density and bulking requirement.

This supplier discipline is part of the organic fertilizer production project, not an administrative extra. A plant that cannot explain where a manure batch came from will struggle to diagnose unexpected moisture, contaminants or nutrient results later. Supplier records also give poultry farms a reason to keep plastics, wire, excess soil and other foreign material out of the load before it leaves the farm.

RICHI MACHINERY

Rice Hulls Change the Compost Physics

The compost recipe is adjusted to physical behavior, not to a permanent manure-to-sawdust ratio. A useful starting mix needs enough moisture for microbial activity but enough pore space for air to move through the pile. For aerobic composting, operators commonly work toward an initial moisture range around 50–60% and a carbon-to-nitrogen balance in the neighborhood of 25:1–30:1. The exact addition of rice hull or sawdust changes whenever the incoming manure changes.

This matters in the Philippines because broiler litter can already contain a substantial bedding fraction. Adding the same quantity of dry bulking material to a litter-rich load and to a wet layer-manure load would waste material in one batch and leave the other too dense. The operator instead checks moisture, texture and existing bedding, then uses the dry stream to correct the mix before active composting begins.

• Very wet layer manure receives more structural dry material so the pile can drain internally and remain aerated.
• Broiler litter with useful rice-hull bedding may need little additional bulking material.
• Rain-soaked structural material is not treated as equivalent to dry rice hull or sawdust.
• Microbial additives remain optional process aids; they do not replace oxygen, moisture control or correct pile structure.

This approach also fixes the weak mass-balance logic that often appears in manure projects. The plant does not assume that 20,000 tonnes of incoming wet material should become 20,000 tonnes of fertilizer. Water evaporates, carbon is biologically converted and some mass leaves as carbon dioxide and other normal decomposition products. Finished tonnes are therefore calculated from measured dry matter and product moisture, not from incoming truck weight alone.

RICHI MACHINERY

The Compost Yard Carries More Inventory Than the Packing Line

The compost yard carries far more material at one time than the powder line. At about 20,000 tonnes of annual wet input over 250 receiving days, the plant averages roughly 80 tonnes of new material on an active delivery day. If the active aerobic stage occupies about 15–20 days, the biological section can hold roughly 1,200–1,600 tonnes before allowing for the separate maturation inventory.

Bulk density changes with bedding, moisture and decomposition, so the civil design is not based on one universal tonnes-per-cubic-metre assumption. A practical first layout allows roughly 2,400–2,800 m³ of active pile volume, plus turning lanes and a separate maturation floor. Final dimensions are adjusted after the customer confirms the chosen compost turner, working pile height, actual mixed-material density and the amount of rainy-season cover.

Material is not released to crushing just because a calendar day has arrived. Operators follow pile-temperature trends, odor, moisture, structure and stability. When active heating has subsided and the batch behaves like mature compost rather than fresh poultry waste, it moves to maturation. Keeping that second zone separate prevents the mechanical line from pressuring operators to shorten the biological stage whenever the packing department wants more feedstock.

RICHI MACHINERY

The Process Crosses One Biological-to-Mechanical Boundary

The complete route crosses one clear boundary: wet biological processing ends before dry mechanical finishing begins. Fresh manure never goes directly to the crusher, and the packing machine never dictates compost maturity. The plant moves material in one direction so each stage solves a different problem.

1. Receive layer manure and broiler litter in the contained wet zone; inspect source, moisture, bedding and visible contamination.
2. Store rice hull, clean sawdust and other approved dry structural materials under cover, then blend only the quantity needed for the current manure condition.
3. Run active aerobic composting with scheduled turning, moisture observation and temperature tracking; maintain access for the loader and turner.
4. Move stabilized material to a separate maturation area and release it only after the compost is suitable for dry mechanical handling.
5. Feed mature compost through the organic fertilizer crusher and screen; return suitable oversize to crushing and remove foreign material from the product stream.
6. Add approved nutrient or soil-amendment ingredients only when the registered commercial formula requires them, then complete final mixing.
7. Weigh the powder into 25 kg or 40 kg bags, identify the production lot and move the sealed product into dry finished storage.

This is a shorter route than a pellet-fertilizer organic fertilizer production line. There is no FZLH ring-die stage, pellet cooler or pellet screen in the current phase. The omission is deliberate: the customer already has buyers for a screened powder product, so the first investment is concentrated on manure stabilization, physical cleanliness and reliable bagging rather than on changing the fertilizer into a second physical form.

RICHI MACHINERY

The Dry End Is Sized Above the 4 T/H Average

Once compost is mature, the factory behaves like a comparatively simple dry finishing plant. The 5–6 T/H mechanical section provides reserve above the 4 T/H annual average and prevents one screen change or bagging interruption from becoming an annual-capacity problem. Crusher duty is controlled by lump size, not by an attempt to pulverize every particle. Screening sets the commercial physical fraction, while the packing system is selected from bags per hour as well as tonnes per hour.

Packaging capacity is checked separately. At 8,000 T/A, all-40 kg production would mean about 200,000 bags per year; an all-25 kg program would require about 320,000. The customer can therefore change package mix without replacing the biological section. What changes is the required bagging rate, warehouse handling and distributor logistics.

RICHI MACHINERY

The Site Keeps Rainwater Away from the Manure Route

The 5,000–5,500 m² site is divided by moisture risk rather than by a neat row of machines. Fresh poultry manure stays at the dirty end. Dry bulking material is covered beside the blending area. Active composting takes the largest block because residence time consumes land. Maturation sits between the biological yard and the finishing room. Crusher, screen, mixer and packing equipment remain in the cleaner dry section, followed by the finished-product warehouse.

Rainfall has a direct influence on the civil design. Roof runoff and clean stormwater should not be mixed unnecessarily with water that has contacted manure. Wet receiving and active-compost areas therefore drain toward controlled collection, while covered dry-material storage prevents a useful moisture-absorbing ingredient from becoming another wet feedstock. The final first-flush volume is calculated from local rainfall intensity and paved catchment area, not copied as a fixed tank size from another country.

RICHI MACHINERY

Odor Dust and Contact Water Are Controlled at Different Points

Environmental control begins with material management. Fresh manure is moved into the compost recipe instead of sitting indefinitely in an uncontrolled heap. Correct porosity and turning support aerobic conditions and reduce the odor problems associated with compact anaerobic zones. Impermeable wet-area floors and contact-water collection protect the site during abnormal wet batches, while clean roof water is routed separately where practical.

Dust control belongs at the dry end: crushing, screening, final mixing and packing. Local extraction is used where these operations release fines. Noise is addressed around rotating equipment, and housekeeping keeps dust from accumulating around motors. The project does not publish invented odor-removal efficiencies or universal Philippine discharge limits; final environmental controls follow the site’s permit, local drainage design and the actual odor-treatment configuration selected for the building.

RICHI MACHINERY

A Bagged Powder Needs a Regulatory Identity

A screened compost becomes a commercial product only when the customer can define what is in the bag and support the claim on the label. The first-phase product is mainly below 5–6 mm and is commonly packed at 25 kg or 40 kg. Finished moisture is controlled for storage and sale, but the project does not treat one arbitrary moisture number as a universal Philippine legal limit. Representative batches are tested against the specification the customer intends to register and sell.

The regulatory route also depends on how the product is marketed. Current Philippine guidance states that products sold with an organic soil-amendment claim fall under the DA-BAFS organic-input framework, including producer/product registration, certification and labeling requirements.

The plant therefore keeps raw-material records, compost-batch records, formulation data and finished-product test results that can support the applicable registration route instead of designing the label after production has already started.

This matters because the word “organic” is not only a description of manure origin. It is also a regulated marketing claim. If the customer wants the finished fertilizer recognized as an organic soil amendment, the production and certification system has to support that claim. The crusher and screen can create a clean physical product, but they cannot create regulatory status by themselves.

RICHI MACHINERY

Utilities Follow the Workload of the Compost Yard

The powder route keeps utilities modest because there is no pellet mill and no routine thermal dryer. Major electrical consumers are the compost turner, pre-mixer, crusher, screen, final mixer, conveyors, ventilation, dust collection and packing machine. A practical connected-load class is roughly 100–160 kW, subject to the selected turner and odor-control system. Annual electricity planning of about 180–280 MWh is reasonable until the final duty cycle is confirmed.

The Philippine grid operates at 60 Hz, but site voltage, transformer size and protection have to match the local distribution connection and the final motor list. Fresh-water demand is comparatively small because the incoming manure already carries a large water load. Water is used for staff, cleaning, occasional compost moisture correction and environmental-control makeup. A planning range of about 250–500 m³/year is more defensible than pretending the process uses no water at all.

Around 8–10 direct operating roles can cover a normal production day when the plant uses a loader, compost turner, conveyors and quantitative packing. The team spans receiving and loader work, compost monitoring, mechanical finishing, packing/warehouse duties, quality records and maintenance support. Administration, laboratory testing or transport can be shared or contracted according to the customer’s wider business.

RICHI MACHINERY

USD 70000 Covers the Core Equipment Package

The USD 70,000 RICHI scope is concentrated on the equipment that changes manure into a consistent powder product: blending, compost-turning support, mature-compost feeding, crushing, screening, final mixing, conveying, packing, dust-control interfaces and electrical integration. Concrete fermentation lanes, buildings, local drainage, land and vehicles are owner-side items unless the final contract explicitly adds them.

Project execution starts with the compost yard because civil mistakes there are harder to correct after manure begins arriving. Foundation and layout drawings establish receiving, turning lanes, maturation, dry finishing and warehouse traffic before shipment. The equipment package leaves from Qingdao and can enter through the Manila-area port system for inland delivery under the project’s planned logistics route.

Commissioning begins with real poultry-manure mixtures rather than with the bagging machine. Operators first establish moisture correction, turning access and maturity release. Only then are crusher feed rate, screen return, final mixing and bagging accuracy tuned. The first campaigns create the customer’s own operating database for layer manure, broiler litter, rice hull, rainy-season moisture and local finished-product behavior.

RICHI MACHINERY

Pelletizing Is Reserved for a Proven Product-Mix Change

Pelletizing remains an expansion option, not a missing machine. If distributors later pay for a denser product, part of the mature powder can be diverted through moisture conditioning and a poultry manure pellet machine. The size of that future section should be calculated from the tonnage that will actually become pellets, not automatically from the full 8,000 T/A powder output.

The same rule applies when selecting an organic fertilizer pellet mill or an organic fertilizer pellet making machine. A 3,000-ton pellet program and an 8,000-ton pellet program are different projects. Reserving floor space, electrical capacity and conveying connection points now is inexpensive; buying a full pellet line before the market exists is not.

For another chicken manure powder fertilizer plant in the Philippines, RICHI Machinery would begin with collectable manure tonnage, measured moisture, layer/broiler mix, bedding, transport radius, available rice hull or sawdust, composting land, rainfall exposure, product-registration route, package sizes and annual sales plan. Those inputs determine whether the right first project is a powder plant, a pellet plant or a staged investment that begins with powder and leaves a controlled path to future granulation.

Where a future buyer specifically requires pellets, the reserved expansion space can also accommodate a chicken manure pellet machine. Until that demand is proven, the commercial advantage of this project is the opposite: it stops processing when the screened powder already has a viable market.
