100kg-1 ton Small Scale Fish Feed Plant equipment

Small Scale Fish Feed Plant

fish and pellet
Small Scale Fish Feed Plant

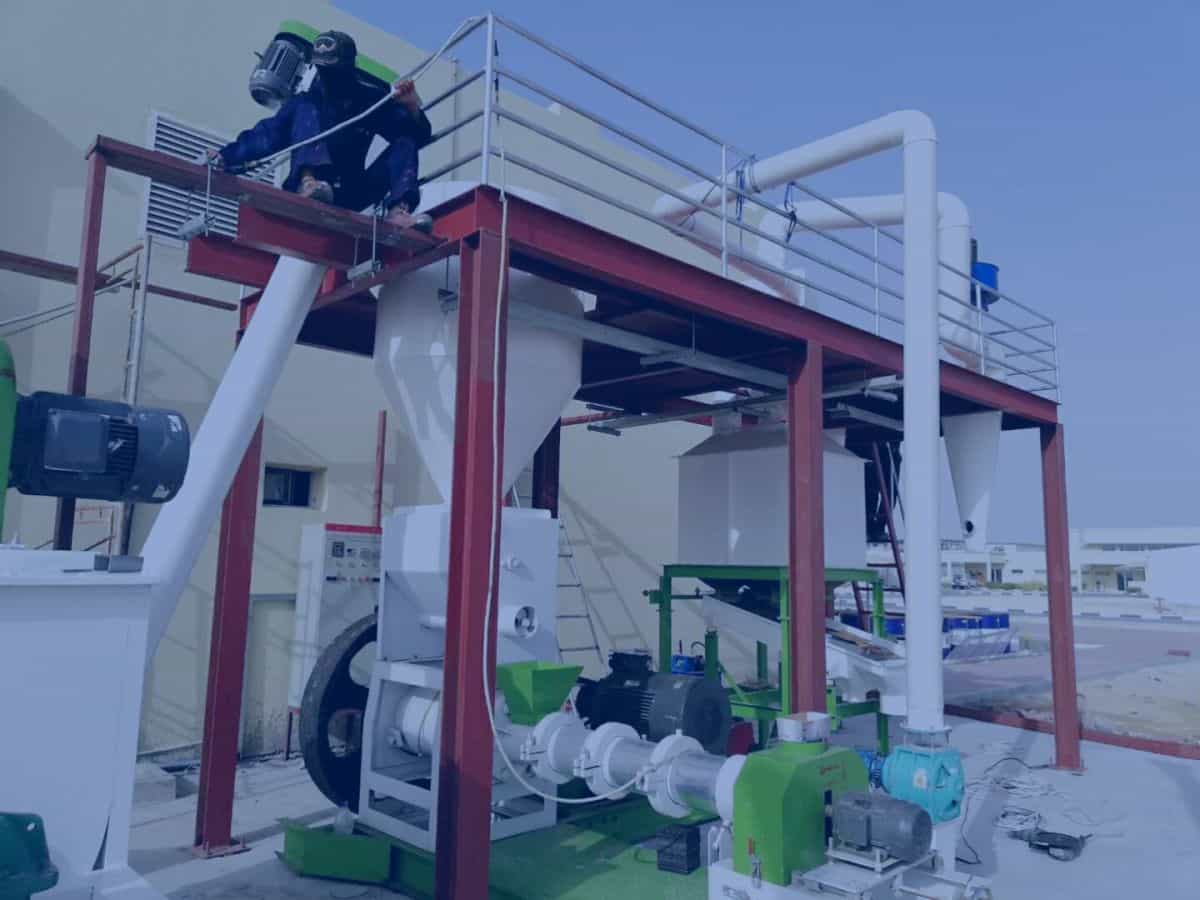

small scale fish feed mill plant supplier
RICHI customize

As a leading global manufacturer of feed machinery and equipment, we have been deeply involved in the fish feed equipment for nearly 30 years.

We can provide you with a complete set of equipment for fish feed production, a turnkey project for small scale fish feed plant, which can be used to process high-fat and high moisture raw materials, and provide ideal aquatic feed production solutions for various farms and feed factories.

  • Types of feed that can be processed: It can produce fish feed such as tilapia, trout, catfish, eel, salmon, herring, ornamental fish, etc, and other types of extruded feeds can also be processed, such as pet feed, shrimp feed, cattle feed, poultry feed, etc.
  • Raw materials: rice bran, soybean cake, silkworm pupa powder, bran, fish meal, barley flour, corn flour, vitamins, bone meal, etc.
  • Usage: You can use our small fish feed plant to process various extruded feeds, or you can use fish feed production line combined with feed pellets mills to process extruded fish feed and shrimp feed pellets or livestock and poultry feed pellets.
  • Related solutions:

Production(Tons/Hour)

Pellet Size(mm)

Customizable:

We provide customized small capacity fish feed mill design for customers according to different fish feed types, feed sizes, process requirements (extrusion or pelleting), plant size, and investment budget. From 0.1 tons to 1 ton per hour, we can provide various dry fish feed processing systems, wet fish feed processing systems, single screw fish feed processing systems, and twin screw fish feed systems.

‌Low cost‌:

Small scale fish feed plants have the characteristics of simple structure, convenient operation, and low cost. This type of equipment usually includes basic components such as feed pellet machines and mixers, which can complete feed crushing, mixing, granulation and other processes, and is suitable for users with limited budgets.

Wide applicability:

Suitable for farms of all sizes and small feed factories. It is suitable for the processing of fish feed, pet food and various extruded livestock and poultry feeds. It can meet the basic needs of these users for feed processing, while being easy to operate and having low maintenance costs.

‌Flexibility‌:

Small fish feed plants are usually simple in structure, light and easy to install, and the feed pipe can be easily installed and disassembled, and one person can carry and install it. This flexibility makes it very suitable for use in small and medium-sized ponds.

Diversified functions‌:

Small scale fish feed plant can complete feed crushing, mixing, granulation and other processes to meet different breeding needs. In addition, through reasonable breeding planning, it can not only meet people’s demand for high-quality aquatic products, but also reduce the over-exploitation of natural resources.

Low technical threshold‌:

Compared with large-scale fish feed plants, small fish feed lines have relatively low technical thresholds, and low start-up capital and technical requirements. As long as you purchase high-quality and advanced fish feed equipment and master the correct fish feed processing technology, you can quickly produce and stand out in the local market competition.

small capacity fish feed plant process flow design
Small capacity silo
small fish feed crusher machine
small fish Feed Mixer
Ultrafine Grinder

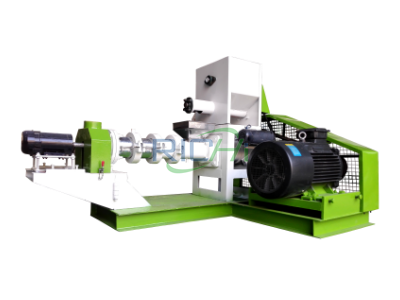

Dry Type Fish Feed Extruder
feed pellet cooler
Rotary grading screen
fish feed packing machine

application of small capacity fish feed plant

fish feed pellets
Blue Arrow
tilapia
catfish
Cod
Sturgeon
Trout
Salmon

100-150 kg/h mini fish feed mill process flow chart

100-150KG/H small capacity fish feed Equipment Configuration List:

No.equipment nameModelQTY
101fish food grinderRICR-2001
102Mixing machine for fish feedHHJ-251
103Screw conveyorTLSS161
104Fish Feed ExtruderDGP60-C1
105Transportation system/1
106Mesh typ drying machineDHG-1501
107Spraying machinePTJ-251
Electrical Control section1

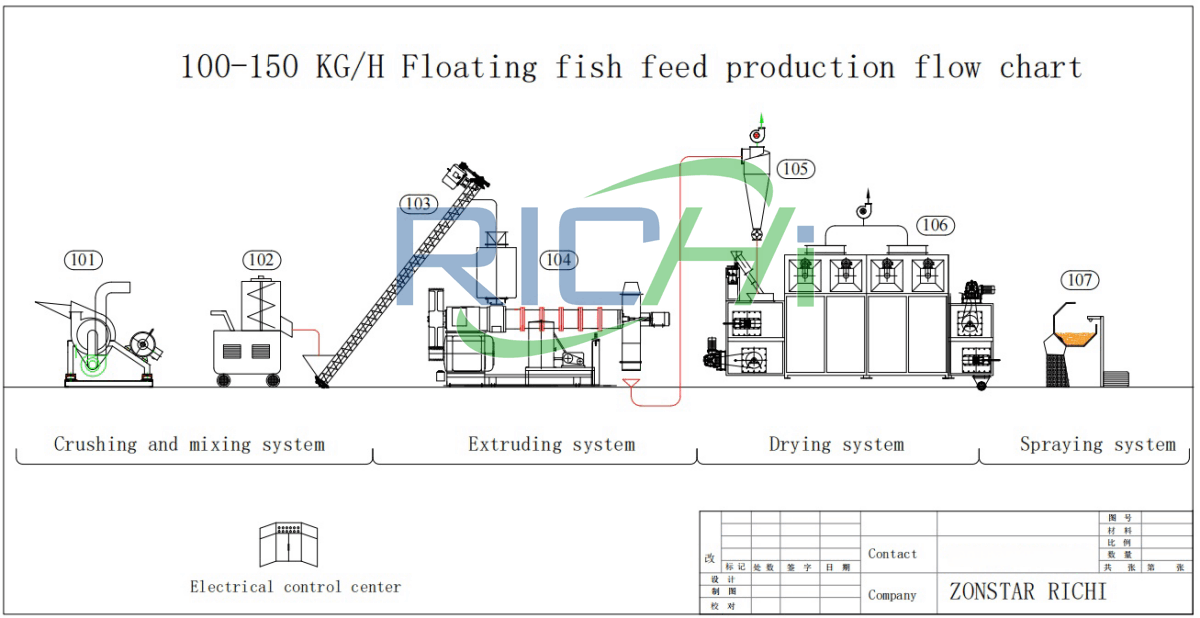

100-150kg Small Scale Fish Feed Plant flow chart

180-200 kg/h Small Scale Fish Feed mill Plant design

180-200 KG/H fish feed manufacturing Equipment Configuration List:

NO.NAMEMODELQTY
101small fish feed CrusherRICR-2001
102Delivery system/1
103small fish feed Mixing machineSLHY0.1A 1
104Screw conveyorTLSS161
105single screw Fish Feed ExtruderDGP70-B1
106Delivery system/1
106Mesh typ drying machineDHG-1501
107Spraying machinePTJ-251
Electrical Control section1
180-200kg Small Scale Fish Feed Plant flow chart

300-350 kg/h Small Scale Fish Feed pellet Plant process flow chart

300-350KG/H small fish feed machine Configuration List:

NO.NAMEMODELQTY
101fish feed CrusherRICR-3501
102Delivery system/1
103Screw conveyorTLSS161
104fish food Mixing machineSLHY0.15A 1
105Screw conveyorTLSS161
106Fish Feed Extruder machineDGP90-B1
107Delivery system/1
108Mesh belt machineDHG-3501
109Delivery system/1
110Spraying machineRISP-3501
111Delivery system/1
112Cooling machineRICL-3501
Electrical Control system1
300-350kg Small Scale Fish Feed Plant flow chart design

500 kg/h small scale fish feed plant design

500 KG/H fish feed making Equipment Configuration List:

NO.NAMEMODELQTY
1Screw conveyorTLSS161
2Storage bin 1 m³1
3fish feed Hammer millRICR-6001
4fish feed mixer machineSLHY0.2A 1
5Fish Feed ExtruderDGP120-B1
6Mesh typ drying machineDHG-6001
7Spraying machineRISP-2501
8fish pellet Cooling machineRICL-6001
9Finished products bin2m³1
10Automatic packing machineDSC-501
11Belt conveyor and sewing machine1
MCC Control Center ;Mimic control panel 1
500kg Small Scale Fish Feed Plant flow chart design

1-1.2 t/h Small Scale Fish Feed Plant process flow chart

1-1.2T/H fish feed processing Equipment Configuration List:

NO.NAMEMODELQTY
1Hammer millSFSP56*401
2Mixing machineSLHY2.0A1
3Stainless steel anti-caking bin1.5m³1
4floating fish feed Extruder machineDSP-135B1
5animal feed DryerRH-WH12001
6Coating machine SYPL15C*21
7Cooling machine SKLN14*141
8Finished product bin1.5m³1
9Auto-packing machineDCS-501
10Sewing + belt conveyour/1
11Oil/water adding machine YZTG100a1
MCC Control Center ;Mimic control panel 1

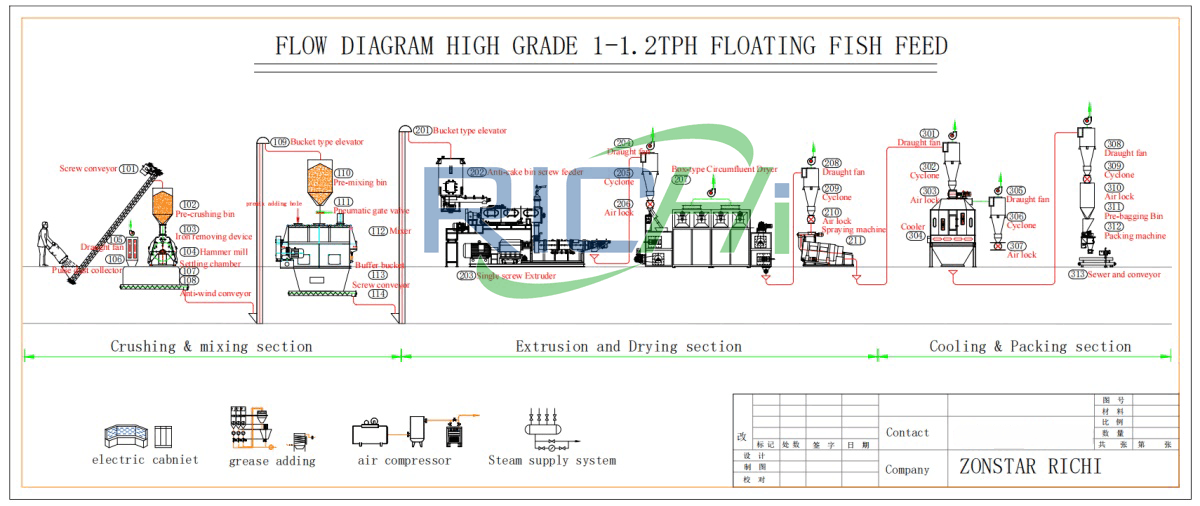

1-1.2tph Small Scale Fish Feed Plant flow chart design

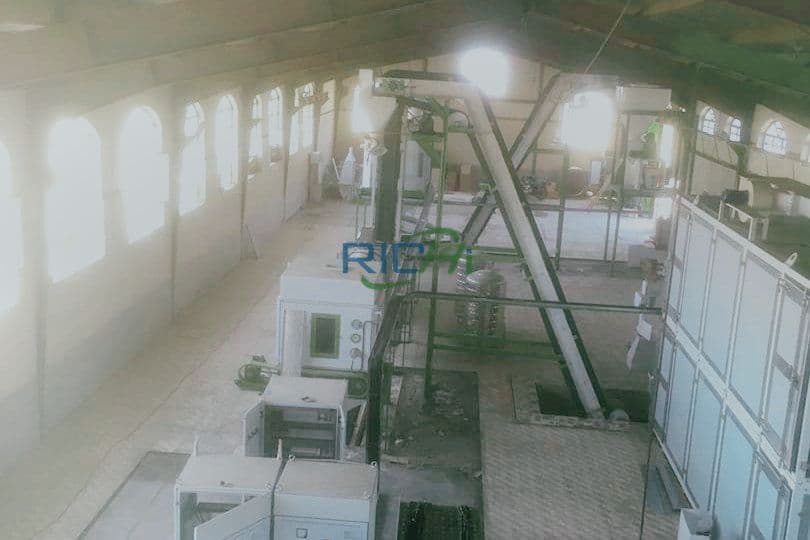

small fish feed production line in iran
Flag_of_Iran
  • Feed type: floating fish feed, sinking feed and shrimp feed
  • Technology Type: Extrusion and pelletizing process
  • Application: Aquaculture farms

Overview:
This is our fourth aquatic feed processing project in Iran. The client of this project is a newly established aquatic feed company. This project adopts extrusion and pelleting composite process to process extruded fish feed and pelletized fish feed and shrimp feed at the same time.

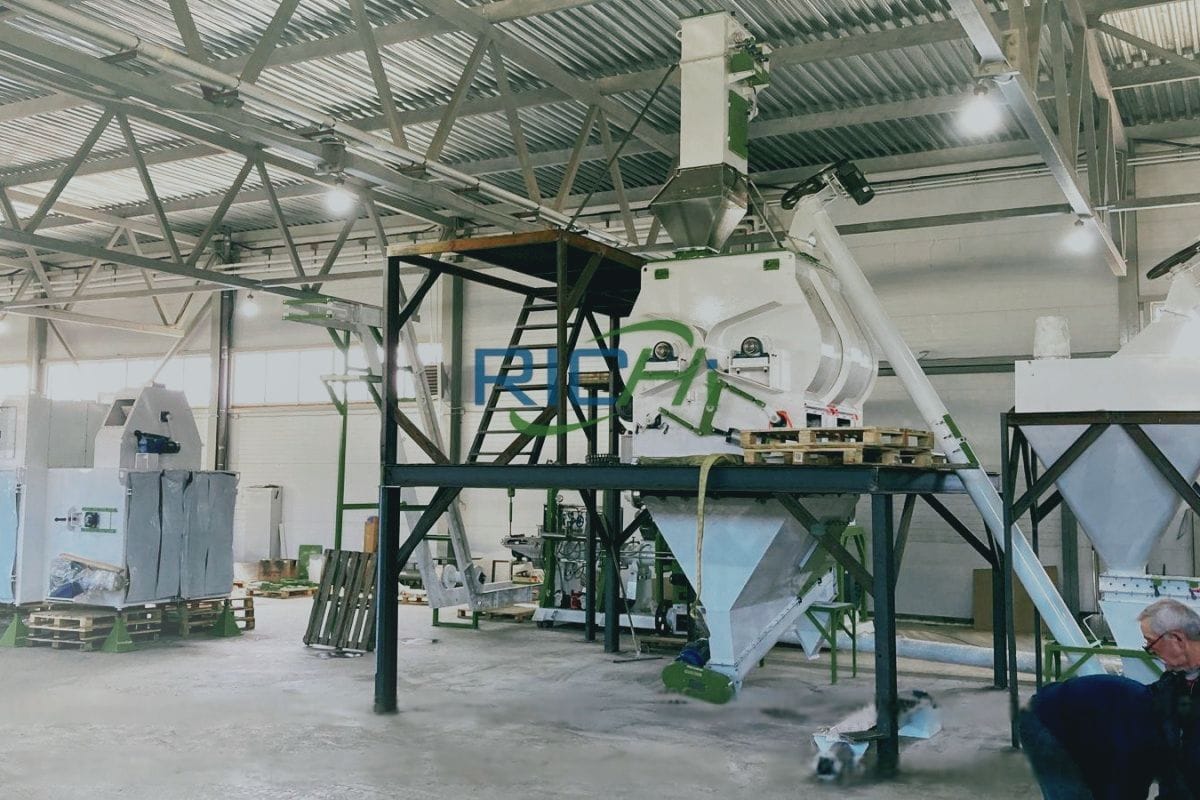

small fish feed plant in russia
flag of russia
  • Feed type: extruded fish feed
  • Technology Type: wet type Extrusion process
  • Application: Seafood Company

Overview:
This is the 9th extruded fish feed production line we have built in Russia. This production line was invested and built by a local aquatic product processing company in Russia. The fish feed processed by this production line will all be used in the fish customer’s own aquaculture farm.

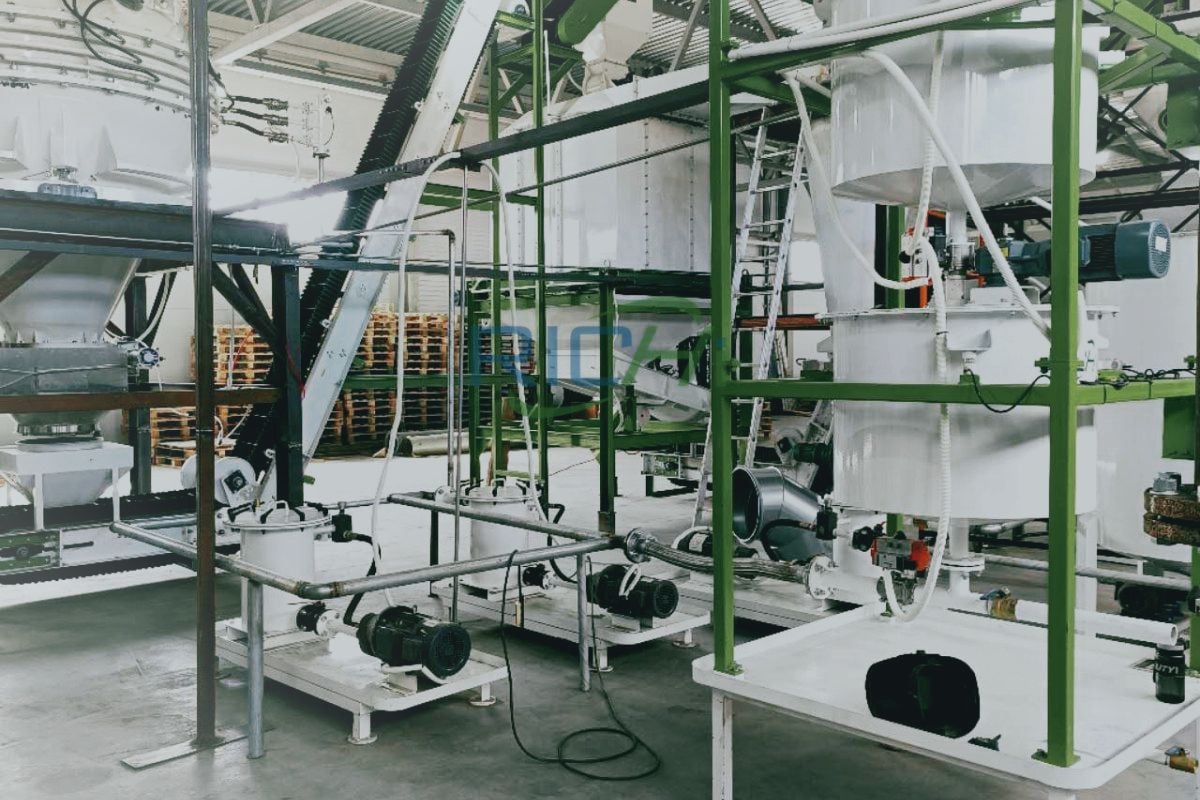

small fish feed plant in Nigeria
Flag-Nigeria
  • Feed type: floating fish feed, and dog feed
  • Technology Type: single screw wet type Extrusion process
  • Application: Aquaculture farms

Overview:
This is a project that uses a single screw wet extruder to process floating fish feed and pet feed. Although this is a small project, all the feed processed in this project will be sold. In addition, this is our 20th feed processing project built in Nigeria and the 8th small fish feed line.

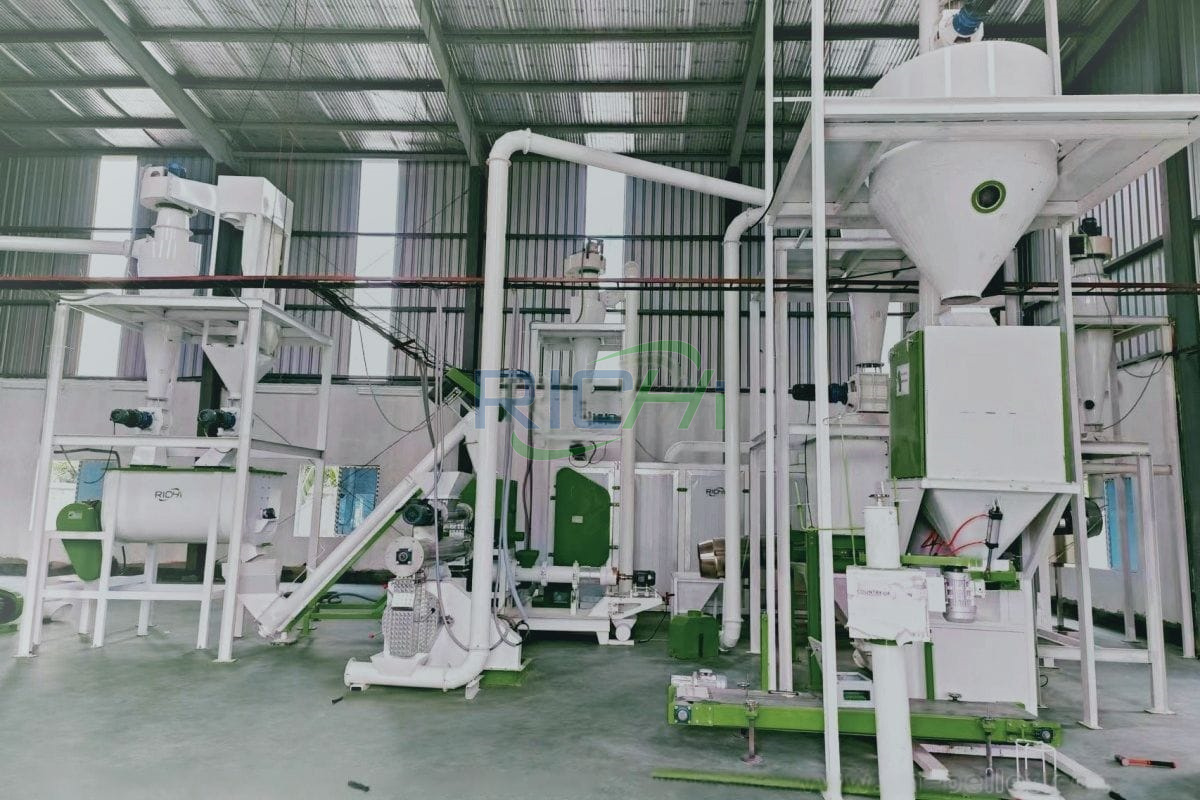

small fish feed plant in Bengal
Flag of Bangladesh
  • Feed types: floating fish feed, and poultry feed
  • Technology Type: dry type Extrusion and pelleting process
  • Application: Aquaculture farms

Overview:
This is a composite production line project, mainly produces floating fish feed and poultry feed. The subsequent customer will also process cattle extruded feed. The customer of this project is a small feed factory, and all the processed feed will be sold to surrounding farms.

small fish feed production line in Ecuador
flags-Ecuador
  • Feed types: extruded shrimp feed and floating fish feed
  • Technology Type: wet type Extrusion process
  • Application: aquaculture farm

Overview:
The client of this project operates a large aquaculture farm. The project mainly produces 1 ton of high-end aquatic feed per hour. In addition to puffed fish feed, shrimp feed also adopts extrusion technology. Therefore, compared with projects with the same output, the equipment configured in this project is more advanced. In addition to this project, we are currently building other aqua feed plants in Ecuador with different production capacities: Including 4 tons of fish feed production line, 2 tons of shrimp feed line, 2 tons of floating fish feed line, etc.

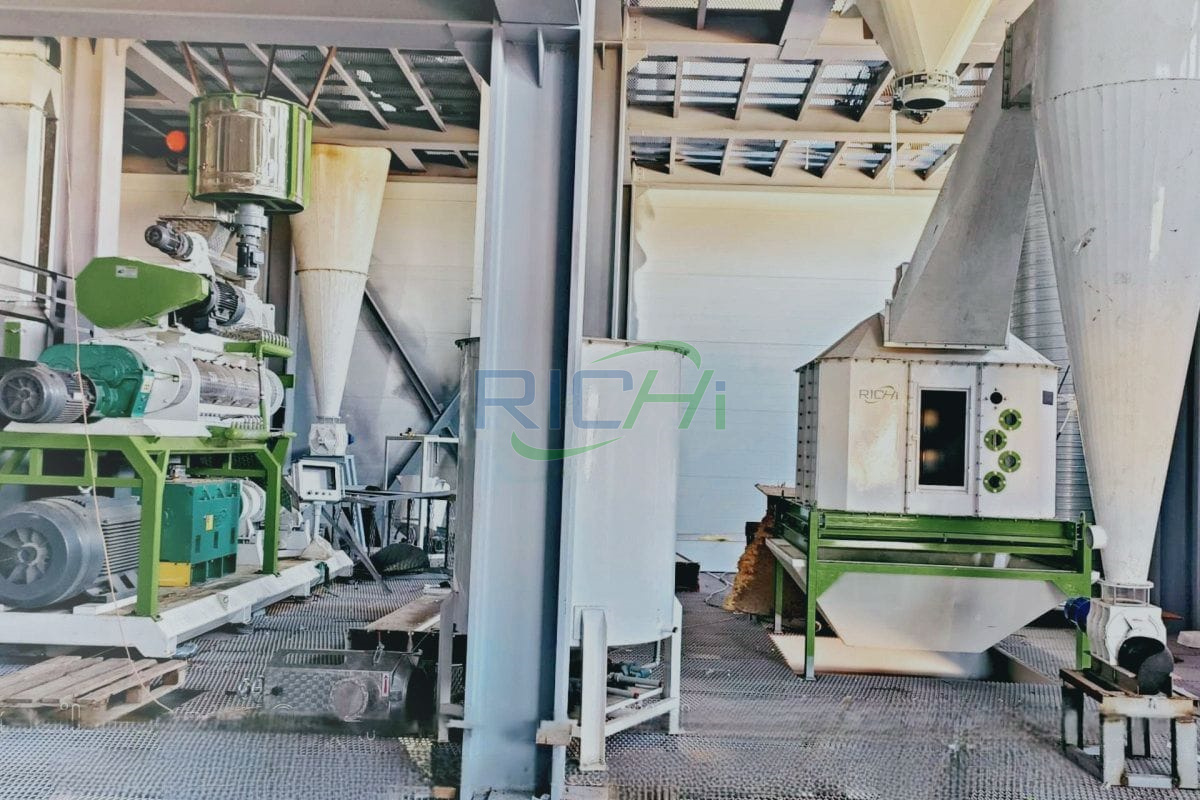

small fish feed pellet plant in Kazakhstan
Flag_of_Kazakhstan
  • Feed types: floating fish feed, and pet food
  • Technology Type: twin screw Extrusion process
  • Application: Aquatic Feed Company

Overview:
This is a high-end extruded feed processing project that uses twin-screw extruders to process fish feed and pet feed. It is also the 22nd pellet production line project we have established in Kazakhstan. This project is an expansion project. The customer originally had a small fish feed production line with a capacity of 500 kg/hour. Based on local feed demand, they invested in expanding a 1/h fish & pet feed line. According to customer needs, I replaced the old production line equipment with new equipment, which can reach a capacity of 1.5 tons per hour.

Project NameCountryTransaction Date
200-400 KG/H small Fish feed extrusion lineEngland2024.04.28
1 T/H small crayfish feed production lineGermany2024.07.19
600-800KG/H small fish feed manufacturing unitUnited States2023.09.19
400-500KG/H small fish feed plant lineIndonesia2023.01.11
1T/H small fish feed processing plantBelarus2023.03.17
300-400KG/H small fish feed processing linePeru2024.01.17
600-700KG/H small fish feed production plantArgentina2024.04.08
500-600KG/H small fish pellet feed production lineGhana2024.09.23
200-300KG/H small fish pellet production lineAngola2023.12.21
1-1.2T/H small fish pellets lineZimbabwe2024.05.24
1T/H small floating fish feed production lineVenezuela2024.04.03
400KG/H small shrimp fish feed production lineMalaysia2024.01.03
500-800KG/H small sinking fish feed production lineSouth Africa2023.08.25
100-300KG/H small fish feed pellet machine lineIndia2024.08.13
1T/H small catfish feed extruder plantThailand2024.09.26
100 KG/H mini fish feed millPakistan2024.05.06
250-350KG/H small fish feed mill plantCameroon2024.06.24
450-600KG/H small catfish feed millSenegal2024.03.02
800-1000 KG/H small floating fish feed pellet plantFrance2024.08.24
global map
world
fish feed plant
fish feed mill for fish farming
fish
wet type fish feed extruder
dry type fish feed extruder
fish

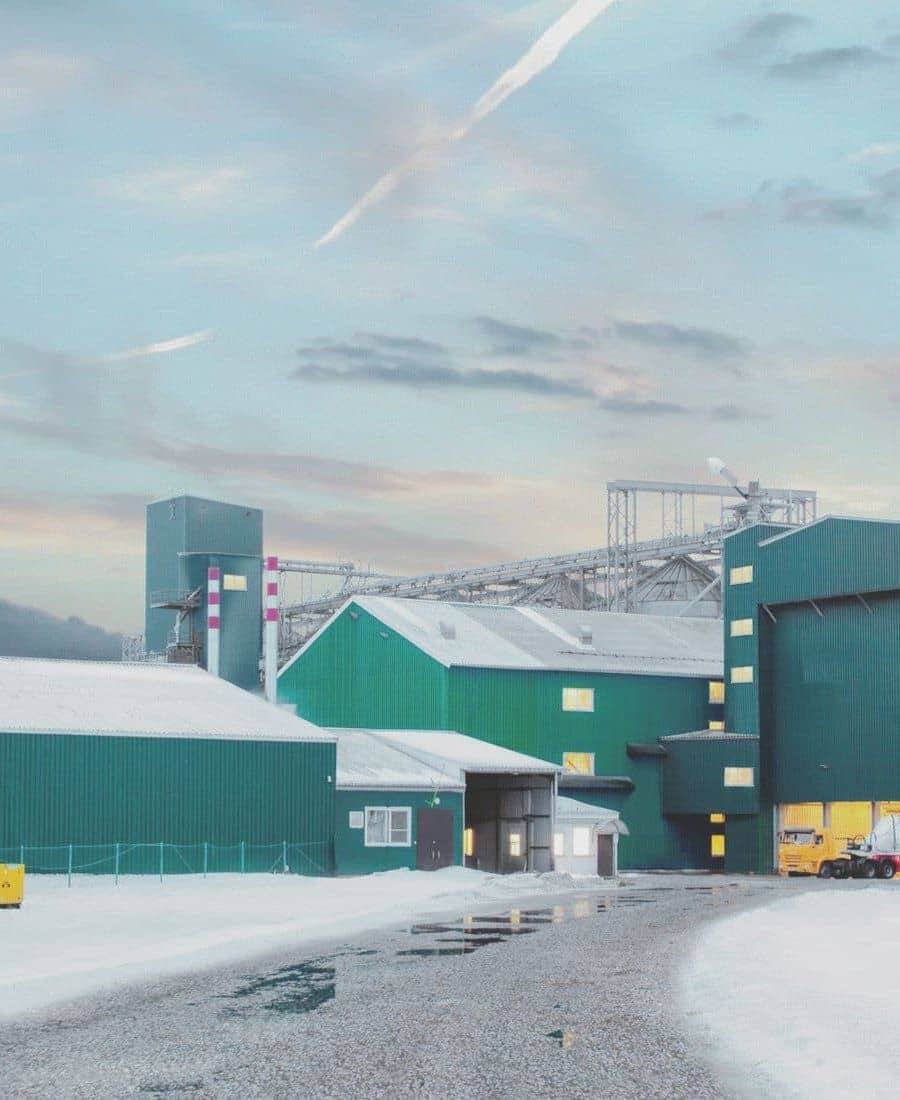

complete feed plant for fish
water

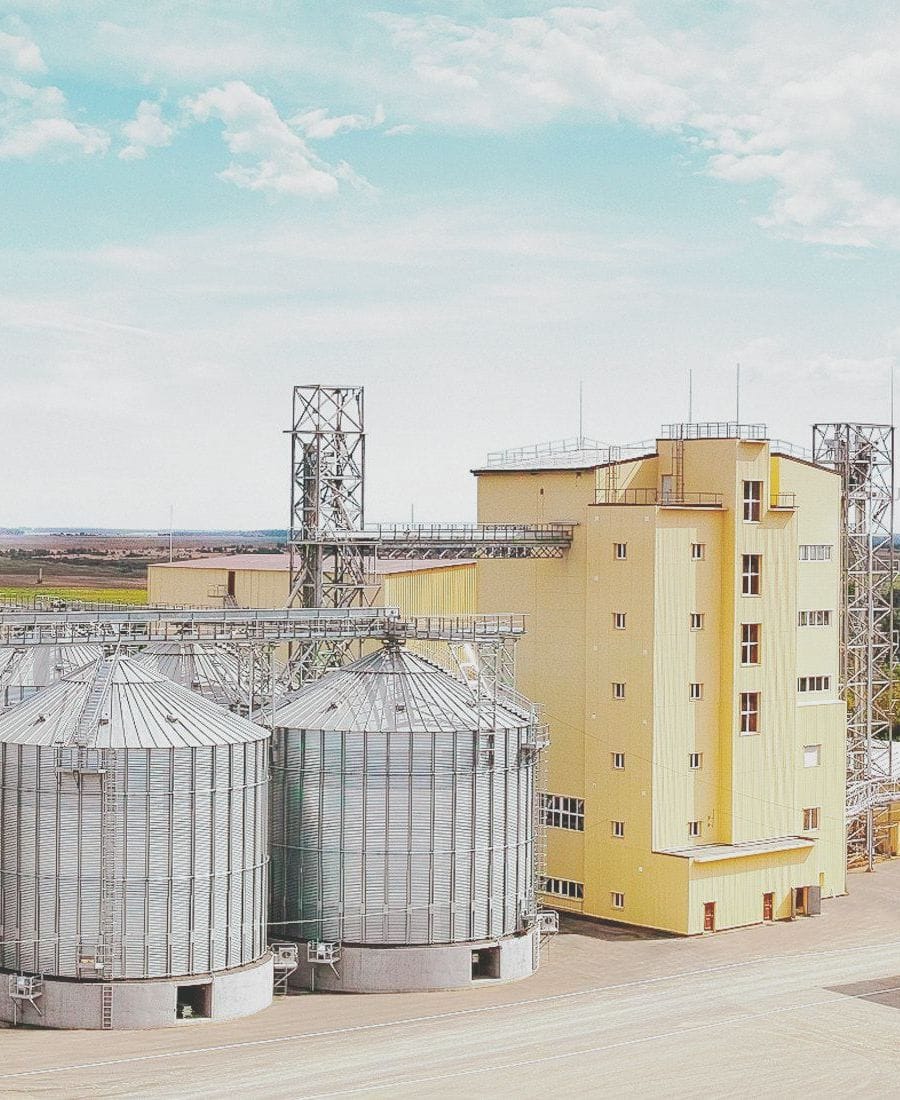

complete feed plant for shrimp
water

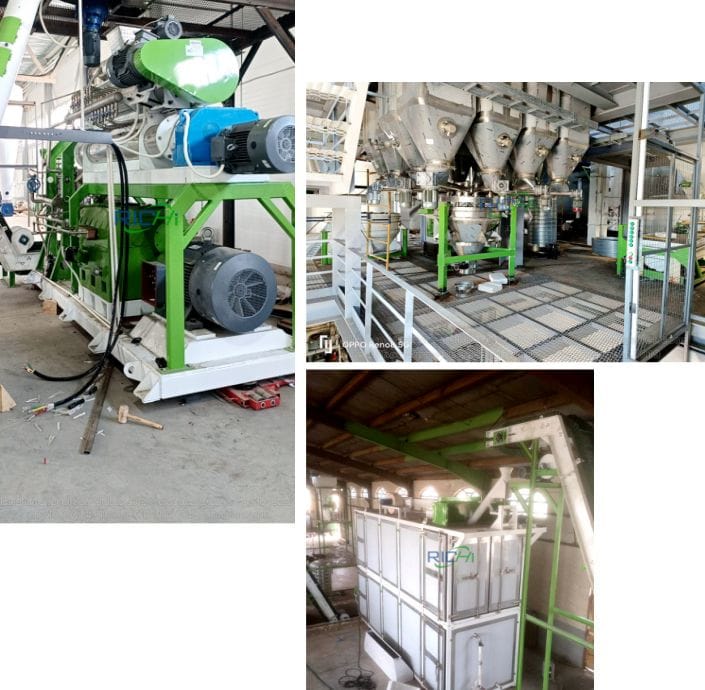

small fish feed plant price

As people’s demand for healthy food grows, the consumption of fish products is also increasing. The fattening process of fish cannot be separated from the supply of appropriate feed. At present, the fish feed on the market is in short supply and the quality is uneven. Therefore, the establishment of a professional fish feed factory can not only meet market demand, but also improve the quality of fish products, and has great market potential and development space.

1. Project objectives

  • Build a modern fish feed plant to achieve continuous production.
  • Provide high-quality fish feed to meet market demand.
  • Establish a sound supply chain system to ensure feed quality and delivery cycle.
  • Achieve a double harvest of economic and social benefits.

2. Project content

  • Plant planning: Select a suitable location to build a small scale fish feed plant to ensure sufficient land area and convenient transportation conditions.
  • Equipment procurement: Purchase advanced feed production equipment and production lines to ensure the production efficiency and quality of feed.
  • Raw material procurement: Cooperate with reliable raw material suppliers to ensure the quality and supply stability of raw materials.
  • Production process arrangement: Determine the production process and process to ensure the high efficiency and stable quality of feed production.
  • Quality control measures: Establish a strict quality control system to ensure that the quality of each batch of feed meets the standards.

3. Implementation plan

  • Preliminary preparation for factory construction: including site selection, application for relevant approvals, design and construction drawings, etc.
  • Factory construction: including civil construction, equipment installation and commissioning, etc. The smaller the output, the shorter the time.
  • Production trial operation: conduct feed production tests and quality control.
  • Market promotion: promote the brand and feed characteristics, and open up sales channels.

After scientific planning and careful implementation, I believe that your small scale fish feed plant project can achieve good economic and social benefits and has the potential for sustainable development.

Consultation and Definitions of small scale fish feed plant
Design and Engineering of small scale fish feed plant
Equipment Manufacturing of small scale fish feed plant
equipment testing of small scale fish feed plant
Equipment delivery of small scale fish feed plant
install of small scale fish feed plant
Operator Training of small scale fish feed plant
Workshop of small scale fish feed plant
faq

FAQs of small scale fish feed plant

If you want to build a small fish feed factory, you must have a lot of questions. No matter what your questions are, contacting us is the fastest way to solve your doubts. Contact us at any time, we are always ready to provide you with full process services.

I have a fish farm and want to build a 200 kg/h small scale fish feed plant. Will the construction process be complicated?

A small fish feed line with an output of 200 kg per hour is a very small output. It only needs a factory building (or house) of suitable size and convenient access to water and electricity for direct installation. The 200 kg fish feed production line is a horizontal structure, and all equipment can be directly arranged in a row according to the process flow.

Regarding equipment installation, equipment use, personnel training, production line layout, post-maintenance and other issues, these are all services that RICHI Machinery will provide you free of charge.

What are your fish feed spraying machines for small scale fish feed plants?

We have a variety of sprayers that can be used for small fish feed lines, mainly divided into traditional drum sprayers and vacuum sprayers. According to the customer’s processing scale and investment budget, you can choose the type that suits you.

Generally speaking, small fish feed production lines generally do not need to choose vacuum sprayers because the cost will be relatively high. If the quality requirements for fish feed are very high, you can consider this equipment.

How many layers of mesh belts does your fish feed dryer for small scale fish feed plant have? Can it be customized?

Yes, our mesh belt dryer has always been customized. At present, we can customize double-layer, triple-layer, quad-layer, five-layer or more mesh belt dryers. However, for small scale fish feed making plants, 3-layer mesh belts are generally used.
