Wood pellet processing equipment

The total investment of this 2.5tph wood pellet processing equipment project is 300,000 US dollars, the total area is 3200 square meters, and the total construction area is 3020 square meters. The project rents the completed factory buildings and office buildings as the business place for production and office.

This project uses processes such as crushing, compression molding, and packaging to produce biomass pellets. The project is expected to produce 6,000t/a of biomass pellets per year.

Main buildings

Building name	Site area (m²)	Number of building floors	Building area (m²)	Remarks
Production hall 1	300	1	300	Factory height 5 meters
Workshop 2	300	1	300	Factory height 5 meters
Raw material storage area 1	480	1	480	Factory height 5 meters
Raw material storage area 2	480	1	480	Factory height 5 meters
Finished product storage area 1	680	1	680	Factory height 5 meters
Finished goods storage area 2	680	1	680	Factory height 5 meters
Office	100	1	100	Factory height 4 meters
Roads and greening in the factory	180	/	/	/
Total	3200		3020	/

• Production workshop 1&2: Located in the southeast corner of the project, it is equipped with production equipment such as crushers and pellet machines, and the areas of crushers and pellet machines are sealed.
• Raw material storage area 1&2: Located on the west side of the project production workshop 1, it is enclosed and covered on all sides, and a ventilation system is installed in the workshop.
• Finished product stacking area 1 & 2: Located on the north side of the project production workshop 1, it is a single-story factory building, enclosed and covered on all sides, and a ventilation system is installed in the factory building.

Product plan and scale

The product of this project is biomass pellets. Its products and their estimated production scale are shown in the table below.

Product name	Annual output (t/a)	Specification	Storage location
Biomass pellets	6000	Φ8mm	Finished product storage area 1, finished product storage area 2

Product output accounting:

This wood pellet processing equipment project uses 4 pellet machines, each with a production capacity of 500-700kg/h, and the production time of this project is 2400 hours/year. After calculation, the production equipment of this project can meet the production capacity requirements of this project.

In the actual production process, the product output is adjusted according to the impact of customer orders. Therefore, the production equipment and production capacity of this project match.

Consumption of raw and auxiliary materials

Name of raw and auxiliary materials	Annual usage t	Maximum storage capacity t	Status/store method	Remarks
Wood scraps	6000.41	200	Solid state stacking	Dry wood, sourced from wood processing enterprises in the surrounding and counties without painting, gluing, and anti-corrosion treatment, only left over after sawing, planing, milling, etc., the wood type is hard miscellaneous wood.

Amount of raw and auxiliary materials:

The raw materials used in this 2.5t/h wood pellet processing equipment project are wood scraps. During the production process, the raw materials will be lost due to the formation of dust due to crushing, pressing and molding processes. Pollution production coefficient is 6.69×10-4t/t-product), that is, the loss is 4.014t.

About 90% of the lost dust is collected into the pulse bag filter for treatment, and most of it is collected as raw and auxiliary materials after being treated by the pulse bag filter, and the dust that has not entered the pulse bag filter is discharged in the workshop without organization.

Most of them are settled on the workshop floor by gravity and collected by the construction unit as raw and auxiliary materials for reuse. Through calculation, the amount of recycled dust is 3.6046t.

It can be calculated that 6004.014 tons of raw materials are needed to produce 6000 tons of biomass pellets. Among them, 3.6046 tons of raw materials are recycled dust, so the annual consumption of raw materials is 6000.41 tons.

The villages near this project are mixed industrial and residential villages, and most of the industries are wood processing industries. Therefore, it is very convenient for customers to purchase raw materials.

wood pellet processing equipment list

Name	QTY	Model/Specification	Purpose

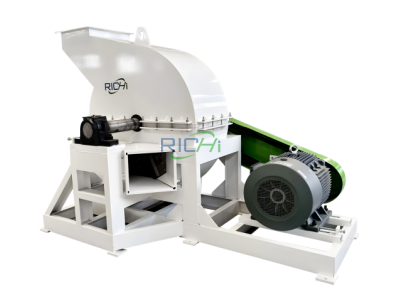

Wood sawdust crusher	2	8MM	Crushing

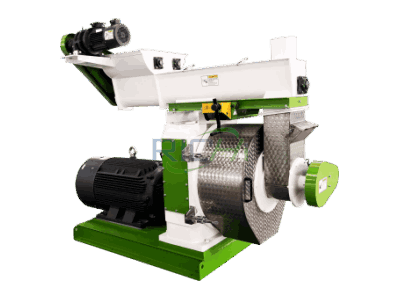

Wood Pelletizer Machine	4	MZLH350	Press forming
Conveyor belt	8	8M	Transport
Forklift	2	CPC3.5T	Transportation

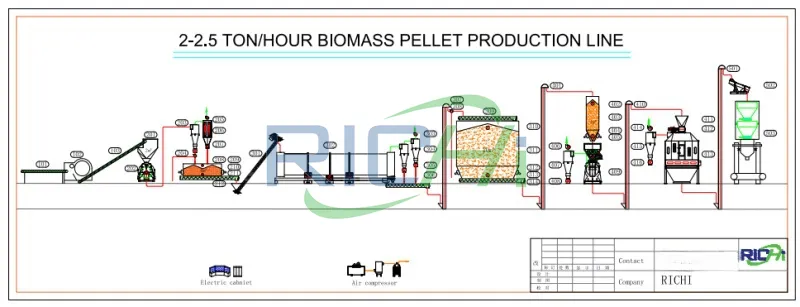

2.5T/H Wood Pellet Plant Process Design

• ①Crushing: Use a forklift to put the materials temporarily stored in the raw material storage area into the hopper, and the materials enter the crusher for crushing to obtain crushed materials with a particle size of less than 5mm;
• ②Compressing and molding: The pulverized material is conveyed into the pellet machine through a closed conveyor belt. After being pressed by a granulator, a biomass shaped granule product with a diameter of 8mm and a length of about 20-40mm is produced;

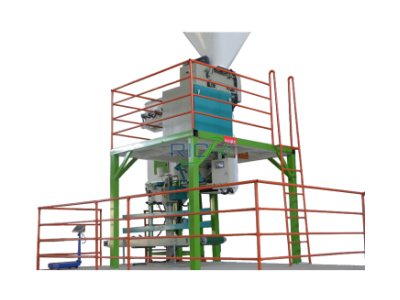

• ③ Packing: The compressed granular products are discharged from the discharge port and packed into bags. (Maybe you are interested in solution: 1.5-2T/H wood pellet line)

Labor quota and working hours

The project plans to have 5 employees, and there are no staff canteens and dormitories in the project. The working system of this project is one shift system, each shift works 8 hours, and the annual working time is 300 days.

Power supply system

The electricity used in this project is connected from the local main power supply line, and the annual electricity consumption is estimated to be about 500,000 kw·h.

Heating system

The project does not use boilers and backup generators, and all production equipment uses electric energy.

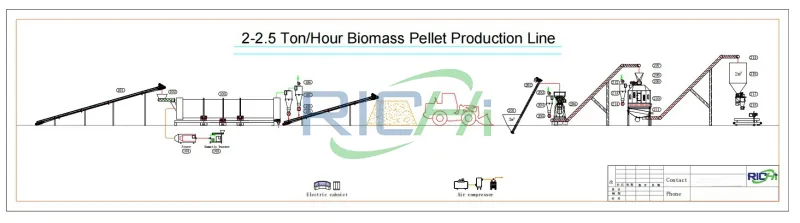

Layout of 2.5T/H Wood Pellet Plant

In the project factory area, the flow of logistics, human flow and information flow in the production area is clear and clear, without crossing and interfering with each other.

The layout of the production line conforms to the logistics direction of the production process, and the production area, raw materials, finished product storage area and office area of the project are clearly divided, to facilitate production management and product storage. In summary, the layout of this project is reasonable.

The client company was established on July 19, 2021, and is mainly engaged in the production and sales of biomass pellet fuel. There are some furniture factories and wood factories around this project, and waste wood will be produced in the production process of furniture factories and wood factories.

The supply of raw materials for this project can be ensured. The raw materials of this project are transported in by truck, and are directly unloaded in the raw material storage area, and the waste wood is transported in bulk. All raw materials are stored in the raw material storage area for use (usually temporarily stored for 2 days).

In view of the large market potential of biomass briquette fuel production, combined with its own capital and technical advantages and the advantages of human resources around the project area, the customer complied with the market demand, took advantage of its own strength and advantages, rented an idle factory building, and purchased a wood granulator machine, crusher mill and other equipment 17 sets.

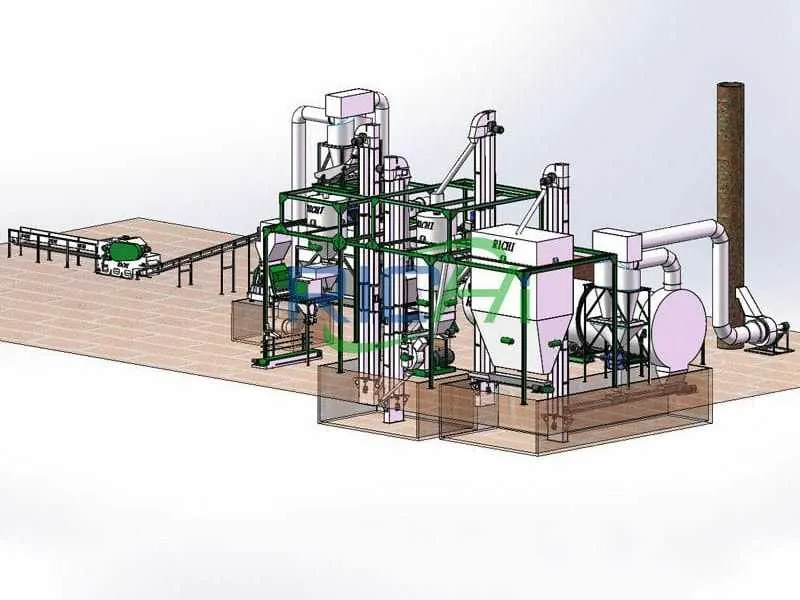

Product solutions

The total investment of the 2.5t/h wood pellet processing equipment project is 230,000 US dollars. After the project is completed, it will form an annual production capacity of 12,000 tons of biomass pellets.

Product name	Design Scale	Year run time
wood pellets	12000t/a	4800h

• Note: The number of employees in the construction project is 10 people, board and lodging are provided in the factory, two shifts are implemented, each shift works for 8 hours, and the annual working time is 300 days, and the annual working time is calculated as 4800 hours. (Maybe you are interested in solution: wood pellet production line)

whole factory Layout design

The project leases an existing factory building of 4,000 square meters, and sets up production workshops, canteens, offices, and toilets. The production workshop is located on the west side of the factory area, the canteen and office are located on the east side of the factory area, and the bathroom is located on the north side of the factory area.

Main Raw and Auxiliary Materials

Name	Annual consumption (t/a)	Storage method	Source	Remarks
Scrap wood	12004	warehouse stacking	Outsourcing	Dry material

wood pellet processing equipment list

The main production equipment of the 2.5 tons per hour project is shown in the table below:

Device Name	Specifications And Models	QTY

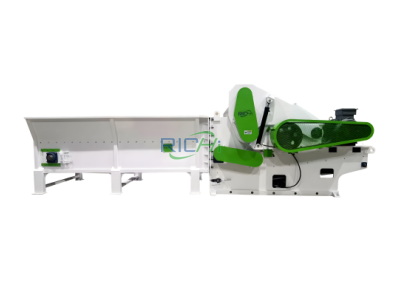

Wood Pallet Crusher	/	1
Wood Sawdust Grinder	SFSP80-5	1
wood pellet extruder machine	MZLH420	2
Conveyor Belt	4080C	7
Loader	940	1
Forklift	CPC	1
Sieving Machine	/	1
Wood Chipper	/	1

Public and auxiliary works

① Water supply

The project is supplied with water by the municipal water supply network, with a water consumption of about 450t/a, which is mainly used for domestic water for employees.

② Drainage

The system of “rain and sewage separation” is implemented. The rainwater is collected and discharged into the local river. No production wastewater is generated in the project.

The domestic sewage is treated in a septic tank (canteen wastewater is passed through a grease trap) and then taken over to the sewage treatment plant, and the tail water is discharged into the sewage treatment plant.

③Power supply

The annual power consumption of the construction project is 1.1 million kW·h, which is provided by the municipal power grid, and the power supply is reliable, which can meet the needs of this project.

④ Storage and transportation

Raw materials are stored in raw material warehouses, finished products are stacked in finished product warehouses, in-factory transportation relies on forklifts and loaders, and out-of-factory transportation relies on social professional logistics companies.

⑤ Risk prevention

The project needs to build a fire pool of 80m3 and an emergency pool of 100m³.

Main engineering

This project utilizes the existing factory buildings and does not add new buildings.

Engineering Name	Design ability	Remarks
Production Workshop	3250 m²	H=10 m
Canteen	100m²	H=3m
Dormitory	150m²	H=3m
Office	100m²	H=3m
Toilet	50m²	H=3m
Material area	175 m²	Material storage
Finished product area	175 m²	Finished product storage

Wood Pellet Process Design

The granulation production process of this project is: crushing-crushing-feeding-granulation-cooling-packing and storage

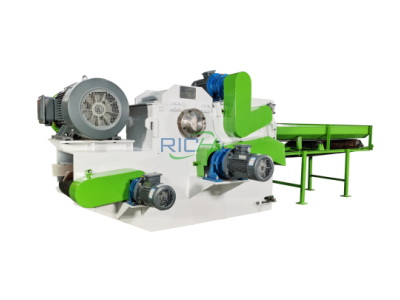

1. Chipping: Put the waste wood raw materials into the chipper and cut them into small pieces. Due to the large particle size of the raw material, there is basically no dust on the conveyor belt. The slicer operates in a semi-closed manner, and the upper part is the feeding port. After slicing, the material is basically still in the form of strips, and the particle size is relatively large.
2. Crushing: Put the chipped waste wood into the crusher through the loader and crush it into plate materials with a particle size of about 10 cm to 80 cm.

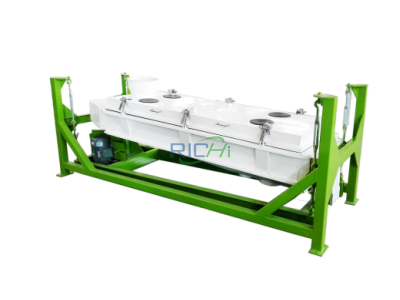

3. Screening: The crushed material is automatically conveyed to the screening machine by the closed conveyor belt to select some scrap metal and other waste impurities mixed in the raw material.
4. Grinding: The screened materials are automatically conveyed to the mill for further grinding through the closed conveyor belt. The grinding diameter is 12mm. The grinding process is carried out in a closed manner, which will generate a small amount of grinding dust.
5. Granulation: After grinding, the product is transported to the wood pellet press granulator through a closed conveyor belt. The wood pellet machine is the key equipment of the production line. The raw material contains a certain amount of cellulose and lignin, and the lignin is the structural monomer in the material.
   It is a high molecular compound, which can strengthen the cell wall and bind cellulose. Lignin is non-crystalline, the main part is insoluble in any solvent at room temperature, has no melting point, but has a softening point.
   When the temperature reaches a certain value, the softening cohesive force of lignin increases, and under a certain pressure, the cellulose molecular clusters are dislocated, deformed, and extended, and the adjacent biomass pellets inside are engaged with each other, recombined and pressed forming.
6. Cooling: The formed biomass wood pellets are transported to the finished product warehouse by a closed conveyor belt, and are slowly and naturally cooled during the conveyor belt transmission process, without drying or drying.
   Since the pellet size of the formed biomass pellet is relatively large (diameter 8mm~10mm, length 2-4cm).
7. Packing: The cooled products are packed manually and stored for sale.

Note: The raw materials are transported to the raw material warehouse by forklifts, and the finished products are transported by forklifts.

The client company was established in September 2017. Due to market demand, the client invested 280,000 US dollars to rent an idle factory building and build a biomass pellet production line. After the project is completed, the production scale will be 8,000 tons of biomass pellets per year.

product plan

Product name	Production scale	Production time
Wood fuel pellets	8000 t/a	8*300=2400h

Product index:

• Calorific value: ≥16.9MJ/kg
• Volatile matter: ≥80%
• Total sulfur: ≤0.07%
• Moisture: ≤8%
• Ash content: <2%
• Apparent density: >1.0g/cm3
• Broken rate: <2%

Consumption of main raw and auxiliary materials

The waste wood and sawdust of this 3t/h wood pellet processing equipment project are all from the furniture factory, and the sawdust is mainly produced by processes such as raw material wood cutting.

Name	Consumption (t/a)	Maximum storage capacity (t/a)	Save method	Remarks
waste wood, sawdust	8020	500	Stacking	Waste sawdust from various furniture factories

wood pellet processing equipment list

Device name	Model	Quantity (unit/set)
Large multifunctional pulverizer		1
Wood Pellet Machine	MZLH520	2

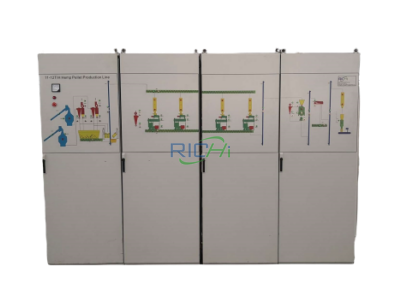

Low-voltage starter cabinet (supporting pellet machine)	/	2
Steam cooling dedusting tower		1
Closed wind dedusting tower		1

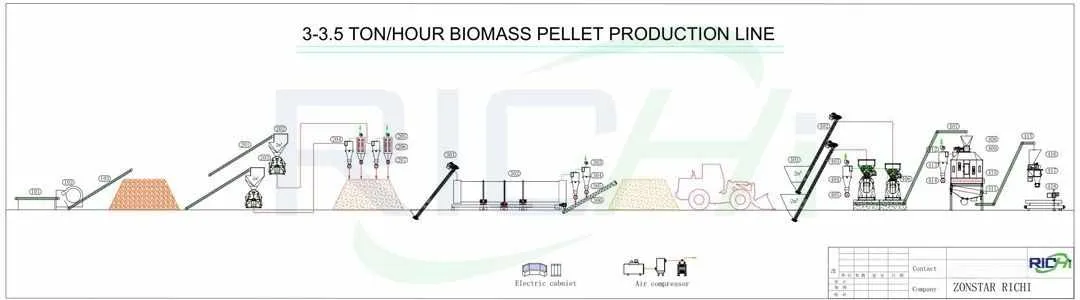

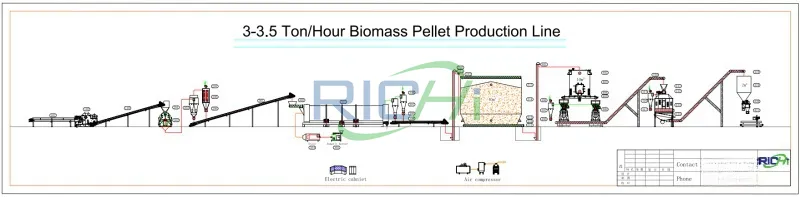

3T/H complete wood pellet production Process Flow

According to the specific requirements of customers, we can tailor-made complete wood pellet plant for sale and supporting overall design.

• ①Crushing: Due to the large waste wood and sawdust, it needs to be crushed to meet the requirements of the briquette forming process. The wood and sawdust are crushed and refined to 3-8mm by a multifunctional crusher for slicing and chipping.

  The pulverizer is only equipped with a material inlet and a material outlet. After feeding, close the material inlet to reduce dust escape. The material outlet is connected to a closed-air cooling and hardening dust removal tower.

  The tower uses the principle of centrifugal force to separate the crushed materials. The crushed materials are deposited in the dust collector, discharged from the discharge port regularly, fall into the material conveyor, and are transported to the granulation process.
• ②Granulation: The pulverized material is sent to the feeding hopper through the belt conveyor, and the electric feeding screw conveyor sends the material evenly to the granulation bin.

  The hole diameter of the mold is 6-10mm. Strong pressure friction occurs between the material in the granulation chamber, the pressure roller and the template to generate a lot of heat, which makes the material temperature rise to about 80-130 degrees.

  The wood fiber is softened and sterilized, and the whole granulation process does not use additional heat or hot steam. The wood pellet press is a closed device with only a small amount of dust escaping, and the generated dust is treated by the dust removal facilities of the equipment.
• ③Cooling: The upper part of the steam cooling dedusting tower has a strong suction pipe to draw out hot steam, moisture and dust, and the particles are cooled and hardened by rolling for 3-5 minutes to further make the product a qualified finished product.
• ④Inspection: If the inspection is qualified, it is the finished product, and the biomass pellets that do not meet the requirements will be reused in production.
• ⑤Packing and warehousing: The qualified finished products produced are packed in bags, weighed, packed, and put into warehousing for stacking.

Labor quota and working hours

There are 10 employees in this 3t/h complete wood pellet processing equipment project, the working hours are 8 hours, and the annual working hours are 300 days.

 Public and auxiliary works

① Water supply

The domestic water consumption of employees in this project is 150t/a, which comes from the municipal pipe network.

② Drainage

There is no production wastewater in this wood pellet production line project, and the domestic wastewater is 80% of the domestic water, and the domestic wastewater is 120t/a.

③Power supply

The annual power consumption of this project is 750,000 kW·h, which is provided by the municipal power grid.

④Exhaust gas

The waste gas generated in the production process of this project is mainly the dust generated in the process of crushing, granulation, cooling, transportation, etc., which will be discharged in an organized manner after being treated by the dust removal equipment.

⑤ Noise

The noise pollution source of this project is mainly the operation noise of machinery and equipment such as pulverizers and wood pellet mills, and the noise value is about 65~85dB (A). It is planned to install sound insulation and shock absorption devices in the production workshop.

⑥Solid waste

The solid waste generated during the production process of this 3t/h wood pellet making plant project is mainly domestic garbage from employees, unqualified products and dust treated by dust removal devices.

The project client is an enterprise mainly engaged in the production, processing and sales of biomass wood fuels. This project leases the existing production plant, which covers an area of 2,000 square meters and a construction area of 2,000 square meters.

It is equipped with crushing, crushing, granulation, raw material warehouses, and finished product warehouses. It uses waste wood as raw materials and can produce 20,000 tons of biomass wood pellets per year. The project rents the built factory building, and there is no earth building and decoration construction.

• Construction nature: newly built
• Investment: The total project investment is 220,000 US dollars
• Power consumption: The power of this project is provided by the municipal power supply network, with an annual power load of about 50,000 kW•h.
• Staff size: 5 employees.
• Working system: 300 days a year, two shifts a day, 10 hours per shift.

wood pellet processing equipment list

Device name	QTY
Wood chipper crusher	1
Wood sawdust grinder	1
Wood pelletizer machine	4
Forklift	3
Pulse dust removal system	1

Environmental investment

Item	Remedy
Exhaust gas treatment	Supporting dust collection and pulse dust removal equipment
Wastewater treatment	Tertiary septic tank
Noise	Shock reduction, noise reduction, noise reduction
Solid waste treatment	Waste collection, storage

3T/H Wood Pelleting Plant Process Design

The project puts the purchased large raw materials on the crusher for crushing through a forklift or forklift, and the small raw materials are crushed together with the crushed materials (the particle size after crushing is below 5mm). The final wood powder is transported to the granulation room of the wood pellet machine equipment through pipelines.

Through the high-speed rotation of the pressing wheel, the wood chip raw material begins to heat up and become soft (the pressure of the high-speed rotating pressing wheel can reach 300T, and the temperature of the wood chip can reach 100℃~130℃ ) , the softened and heated sawdust raw material is extruded through the holes of the formwork under strong pressure.

During this process, the density of the sawdust is increased, the moisture content is reduced, and the compression ratio is 5.5:1. Then it is naturally cooled and dried. After arriving at the finished product warehouse, it can be packaged and shipped.

During this production process, the crushing and pulverizing section is unable to be sealed, so there is dust and waste gas; because the granulation section is carried out in a closed equipment, and the biomass particles are output after being extruded under pressure, there is basically no dust and waste gas overflow at this stage.

Note: The moisture content of the raw materials of the project is 8%~15%, which meets the requirements of granulation and molding, so there is no need to dry or add water during the production process.

This project leases a factory building of 1,800 square meters on one floor. The production scale is 8,000 tons of biomass pellets per year, and the raw material is 8,900 tons of wood. Construct a production line of biomass shaped pellets, the main production equipment includes 2 wood pelletizing machines, 1 wood sawdust pulverizer, 1 wood chipper and related supporting facilities.

Main Raw and Auxiliary Materials

Name	Annual usage	Remarks
Wood	8900t	Outsourcing
Packaging bag (50kg)	160000 bags	Outsourcing

Main products

Name	Annual Production
Biomass wood pellets	8000t

Staff size and working system

Number of employees	Remarks
5 people	No board and lodging in the factory. Working 300 days a year, one shift per day, 8 hours per shift, 2400 hours per year

Construction scale

• Production workshop: Lease a factory building of 1800 square meters on the first floor, and build a biomass pellet production line. The main production equipment includes 2 pellet production machines, 1 pulverizer, 1 crusher and related supporting facilities.
• Material warehouse: Storage of raw materials, located in the leased facility.
• Finished product warehouse: Storage of finished products, located in the leased factory.

wood pellet processing equipment list

Name	QTY
Wood pellet maker	2
Wood sawdust grinding equipment	1
Wood chipping equipment	1
Bag filter	1

3T/H Wood Pelletizing Plant Process Flow

• ①Unloading: The purchased wood (with a moisture content within 10%, placed in the raw material warehouse, without drying) is transported by car to the warehouse of the factory.
• ②Crushing: Pour the wood into the hopper and break it into small pieces through the crusher.
• ③Crushing: The broken wood blocks are poured into the crusher for further crushing and processed into wood chips.
• ④Granulation: Pour the crushed wood chips into the wood pellet mill, and the materials in the granulation bin are combined with the pressing rollers and templates.

  Strong pressure friction is generated between them to generate a large amount of heat, which raises the temperature of the material to about 80-130 degrees, softens the wood fiber and sterilizes the bacteria. The whole granulation process does not use another heat source or hot steam.
• ⑤Packaging: The qualified finished products produced are packed in bags, weighed, packed, and put into storage.

We can customize the whole wet wood pellet equipment for sale the world according to the actual needs of customers, including all process design, budget, wood pellet processing equipment and material procurement, construction, trial operation, etc.

Public works

(1) Water supply and drainage conditions

The water for this 3t/h wood pellet processing equipment project is supplied by the municipal pipe network, and the drainage system separates rain and sewage. There is no production wastewater in this project, and the discharged wastewater mainly comes from the domestic sewage of employees.

Do not live in the factory area, mainly for office and domestic sewage.

(2) Power supply situation

The electricity used in the project is provided by the municipal power grid. The annual power consumption of the project is 600,000 kWh.
