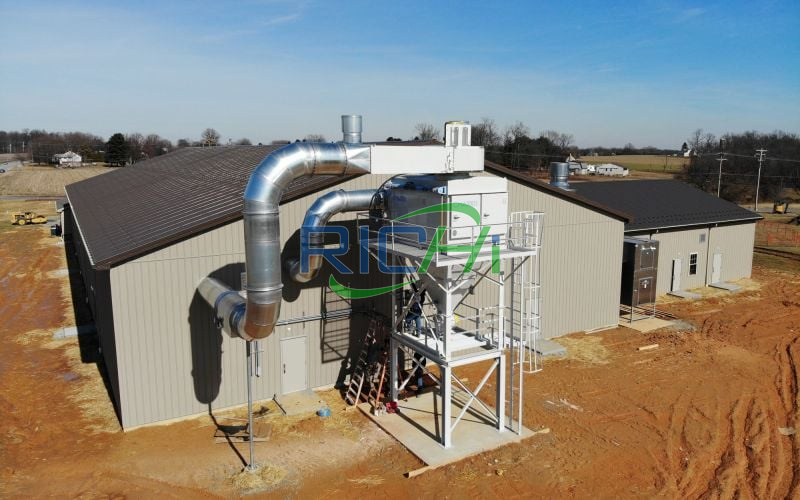

Biomass Pellet Making Line in Tunisia

RICHI MACHINERY

overview

As a North African country, Tunisia’s energy demand and environmental protection policies have an important impact on the biomass pellet market. As the global demand for renewable energy increases, biomass pellets, as a clean and efficient form of energy, continue to grow in market demand. The Tunisian government’s support policy for renewable energy, such as encouraging the development of biomass energy, will provide a good external environment for the biomass pellet market.

In addition, the Tunisian government’s support policy for renewable energy is an important factor in promoting the development of the biomass pellet industry. The government has introduced a series of policies to encourage the development of biomass energy, which provide strong support for the production and use of biomass pellets. In addition, Tunisia’s cooperation with the European Union and other regions may also provide more opportunities for the export of biomass pellets.

Therefore, based on global energy demand and Tunisia’s domestic policy orientation, the project client, a Tunisian renewable resource utilization company, invested $380,000 to establish a biomass pellet production line project. The biomass pellet making line in Tunisia project uses the customer’s existing factory buildings and purchases related production facilities, and builds supporting environmental protection, power supply and distribution, roads and other ancillary projects. The project produces 30,000 t/a of biomass fuel pellets annually.

According to production needs, the project has a production quota of 8 people, a work system of 300 working days per year, and 16 hours of operation per day.

RICHI MACHINERY

Product plan

Number	Name		Output (10,000 t/a)
1	Biomass pellets	Straw pellet biomass	2
2		Wood pellet biomass	1

RICHI MACHINERY

Construction content and scale

This biomass pellet making line in Tunisia project uses the customer’s existing factory building, and the project covers an area of 4700m2. It mainly constructs biomass pellet processing production lines and office areas, and supports environmental protection, fire protection, roads and other auxiliary projects. Water supply, drainage, and power supply projects rely on existing ones. The main construction content and scale of this project are shown in the table below:

Engineering type	Engineering content				Engineering scale
Main project	Production workshop	Located in Building 1, on the south side of the factory, it mainly includes chipping workshop, crushing workshop, pelletizing workshop, crushing buffer zone, pelletizing raw material buffer zone, as well as crushers, grinders and other equipment,			covers an area of ​​2,800m2, with an annual production capacity of 30,000 tons of biomass fuel.
Auxiliary Engineering	Office	Located on the southwest side of the factory			Building area is 200m2
Storage and Transportation Engineering	Raw Material Warehouse	Located in Building 3, on the east side of the factory, it mainly stores wood and straw for biomass pellet production.			Covering an area of ​​800m2
	Finished product warehouse	Located in Building 2, on the south side of the factory, it is mainly used to store finished products			Covering an area of ​​900m2
Public works	Water supply	Water supply from urban water supply network			Annual water consumption is 288t
	Drainage	Rainwater and sewage are separated; rainwater is directly discharged into the nearby river, and domestic sewage is treated in a septic tank and used for fertilizing the surrounding woodlands.			No external discharge
	Power supply	Provided by the municipal power grid			Power consumption is 500,000 kWh/a
	Firefighting	Set up complete firefighting facilities			/
Environmental protection project	Wastewater treatment	Rainwater and sewage separation; domestic wastewater is pre-treated in septic tanks and entrusted to local farmers for regular cleaning, and used as agricultural fertilizer in the surrounding woodlands			No direct external discharge
	Waste gas treatment	Dust	Organized	Set up gas collection hood + bag dust collector + 15m high exhaust chimney	Emissions that meet standards
			Unorganized	Strengthen ventilation in the factory
	Noise control	Install soundproof doors and windows, and install vibration-damping pads on equipment			/
	Solid waste management	Set up a hazardous waste room, located on the southeast side of plant #1			Building area 20m2
		Set up a general solid waste room, located on the southeast side of plant #1			Building area 100m2
		Set up covered trash cans, and garbage collection points should be managed more strictly and removed in a timely manner.			/

RICHI MACHINERY

Main raw materials and energy consumption

The main raw materials and energy consumption of this biomass pellet making line in Tunisia project are as follows:

Number	Name	Consumption
1	Straw	30000t/a
2	Wood chips	10000t/a
3	Branches	5000t/a
4	Wooden scraps	10000t/a
5	Diesel	20t/a
6	Water	288t/a
7	Electricity	500,000 kWh/a

RICHI MACHINERY

Equipment List for Tunisia biomass pelletizing line project

The main production equipment used in this biomass pellet making line in Tunisia project are as follows:

Number	Name	QTY (unit)
1	Chipper	1
2	Crusher	1
3	Scale	1
4	Biomass Pellet mill	2
5	Grabbing machine	1
6	Forklift	1
7	Conveyor	4
8	Cooling machine	1
9	Packaging scale	1

RICHI MACHINERY

Project process design

Based on the customer’s raw materials, plant structure, and investment budget, RICHI engineers designed the following process for the customer:

1. Chipping: Straw, branches, wood chips, wood scraps and other raw materials with large particle sizes are conveyed to the chipper machine through a belt to be initially chipped into smaller particles. Since the raw material particles are large and the particle size of the chipped materials is also large, no dust is generated.
2. Crushing: The chipped materials are transported to the crusher by a forklift for crushing.
3. Granulation: The materials are transported to the straw wood pellet mill by a forklift for the production of biomass fuel pellets.
4. Screening: Put the finished product into a simple sieve for screening, and screen out a very small number of unformed small particles. The finished pelletized products will no longer generate dust. The screened part is returned to production.
5. Packaging: The product enters the finished product warehouse for packaging.

RICHI MACHINERY

How does RICHI design a biomass pellet production line project?

The basic principle of RICHI’s design for this biomass pellet making line in Tunisia project is to divide the production process into several independent processes, and through reasonable coordination and cooperation between processes, the product can be seamlessly transferred between each process and finally complete the production. The basic principles of production line design include reasonable process, standardized operation, efficient equipment, personnel coordination, etc.

The steps we designed for this Tunisian biomass pellet production line are as follows:

Step 1: Determine the type of production line

Determine the appropriate type of production line according to the characteristics of the product and production needs. Common types of production lines include assembly lines, assembly lines, processing lines, etc.

Step 2: Determine the layout of the production line

Determine the appropriate layout of the pelleting line according to the type of project, the number of processes and the characteristics of production equipment. Common production line layouts include linear, U-shaped, L-shaped, etc.

Step 3: Determine the order of processes

Determine the order and coordination between each process, including the transfer method, transfer time and transfer order between processes.

Step 4: Determine process parameters and equipment requirements

Determine the process parameters and corresponding equipment requirements of each process according to the production process and requirements of the product, including the type, quantity, performance, etc. of the equipment.

Step 5: Determine staffing and training

According to the workload and requirements of the biomass pellet plant, determine the corresponding staffing and training plan to ensure that each position has the right personnel to operate and manage.

Step 6: Determine production efficiency and quality control measures

By setting production efficiency and quality indicators, determine the corresponding control measures and management methods to ensure the normal operation of the production line and the stability of product quality.

• The design of the biomass pellet making line in Tunisia project needs to comprehensively consider the production needs, product characteristics and production equipment conditions to ensure the rationality and feasibility of the design.
• When designing the production line, it is necessary to fully understand the equipment and technical requirements required for each process in order to make appropriate arrangements and adjustments.
• The production line design should focus on human-machine collaboration and personnel training to ensure that the operators can master the relevant skills and ensure the stable operation of the production line.
• During the operation of the production line, regular maintenance and overhaul should be carried out to ensure the normal operation of the equipment and continuous production of the production line.

The design of the biomass pellet making line in Tunisia project is a complex and important task, which has an important impact on production efficiency and product quality. Through reasonable production line design, production efficiency can be improved, production costs can be reduced, and product quality and competitiveness can be improved.

Therefore, when designing the biomass pellet making plant, we should fully consider the product characteristics, production needs and equipment conditions, pay attention to the process rationalization and human-machine collaboration of the process, and ensure the smooth operation and sustainable development of the production line.
