Waste Wood Straw Pellet Production Line in Ukraine

RICHI MACHINERY

Project Overview

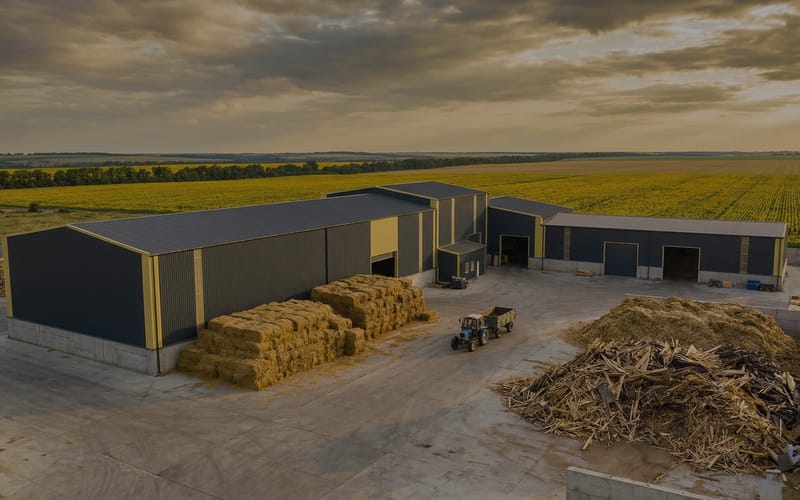

The 7t/h waste wood & straw pellet production line in Ukraine is designed with three parallel pelletizing lines installed inside an existing workshop of approximately 2,500 m², with an additional 1,500 m² outdoor area used for storage and logistics.

Instead of overcomplicating the layout, the plant follows a very practical flow:

• West side: crushing → grinding → drying
• Center: pelletizing + dust collection
• East side: finished product storage

Simple, but it works. And more importantly, it’s easy for operators to manage.

RICHI MACHINERY

How the Inquiry Started

The first message we received from the client was short and slightly vague:

“We have straw and wood waste. Moisture is high. Need stable pellet line, not too complex.”

That was back in March 2024.

A week later, during a video call, a few key things became clear:

• They were already handling straw with ~30% moisture
• Wood waste came from nearby small mills, not standardized
• Storage conditions were not ideal (open or semi-covered)
• They had a limited workforce and didn’t want a complicated system

They weren’t chasing maximum capacity. They wanted something that runs every day without trouble.

Contract was signed in July 2024, after about 4 months of back-and-forth on layout and drying system design.

RICHI MACHINERY

Raw Materials

In Ukraine, especially in agricultural regions, straw availability is not the issue. The challenge is moisture and seasonality.

This straw wood pellet plant construction project uses a mix of straw and wood waste, and we had to design around that.

Raw Material Table

A small note from commissioning phase:
The first few batches had uneven drying because straw moisture varied more than expected. We had to adjust airflow and feeding rhythm slightly.

RICHI MACHINERY

Energy & Consumption

The drying system uses part of the produced pellets as fuel, which keeps operating costs relatively low.

RICHI MACHINERY

Equipment Configuration

We avoided unnecessary complexity. The client made it clear: fewer machines, easier maintenance.

Main Equipment List

RICHI MACHINERY

Layout Thinking

Instead of forcing a complicated design, we adapted to the existing building.

• Crushing & grinding placed on one side to isolate dust
• Drying positioned to allow smooth airflow and exhaust routing
• Pelletizing placed centrally for easy supervision
• Finished goods near exit for fast loading

Also, vehicle and personnel paths were separated, which sounds minor, but improves daily operation significantly.

RICHI MACHINERY

Process Flow

Here’s how the 7t/h waste wood & straw pellet production line in Ukraine runs in real operation:

1. Raw Material Storage
   Stored in enclosed warehouses to reduce dust and moisture fluctuation.
2. Crushing & Grinding
   • Large material reduced in size
   • Final particle size: <14 mm
   • Dust collected and recycled
3. Drying
   • Initial moisture: ~30%
   • Final moisture: 8–10%
   • Temperature zones:
     • Front: ~300°C
     • Middle: ~100°C
     • End: ~70°C
   • Retention time: ~20 minutes
4. Pelletizing
   • No binders used
   • Lignin softening under pressure forms pellets naturally
5. Cooling (Natural)
   • No cooler installed
   • Ambient cooling used to reduce cost
6. Packaging & Storage

RICHI MACHINERY

Environmental Handling

We simplified the straw wood pellet production line while still meeting practical environmental expectations:

• Dust → bag filters + cyclone system
• Exhaust → 15m & 20m chimneys
• Wastewater → minimal, mainly domestic
• Solid waste → reused or given to local farms

Dust collected from filters is directly reused in production. Nothing wasted.

RICHI MACHINERY

Investment & Cost

We intentionally kept the investment moderate. This is not a high-risk project.

RICHI MACHINERY

Shipping Details

Departure Port: Qingdao Port (China) Destination Port: Odesa Port, Ukraine

RICHI MACHINERY

Client Background

The client operates a mid-sized agricultural and wood processing business.

Their situation before the project:

• Straw often burned or left unused
• Wood waste sold cheaply or discarded
• Rising local demand for pellet fuel

They weren’t entering a new industry—they were upgrading existing resources into a higher-value product.

RICHI MACHINERY

A Few Real Observations from Commissioning

• Moisture control is everything. If drying is unstable, pellet quality drops immediately.
• Operators needed about a week to get used to feeding rhythm.
• Once stabilized, the line runs very consistently.

Nothing fancy, just solid engineering.

RICHI MACHINERY

Market Perspective in Ukraine

Biomass pellets are not a “future market” here—they are already in use.

Key drivers:

• Rising energy costs
• Strong agricultural base
• Availability of low-cost raw materials

For many businesses, a 7t/h waste wood & straw pellet production line in Ukraine is not a gamble—it’s a logical extension of what they already have.

RICHI MACHINERY

What We Actually Did for the Client

This biomass pellet project was not just equipment supply.

We supported:

• Process design
• Layout planning
• Equipment manufacturing
• Installation guidance
• Commissioning
• Operator training

And we still provide spare parts support.

Not every project needs to be large or complex to work.

This 7t/h waste wood & straw pellet production line in Ukraine is a good example of something that fits the local situation:

• Raw materials are available
• Investment is reasonable
• Operation is manageable

If you’re sitting on similar raw materials and wondering whether pelletizing makes sense, the first step is simple:

Check your moisture, check your volume, and see what kind of line actually fits your reality—not someone else’s brochure.
