Tofu Cat Litter Production Line In Italy

RICHI MACHINERY

overview

This is a tofu cat litter production line in Italy project that mainly processes high-end cat litter.

The customer is an Italian pet products company that mainly processes, sells, imports and exports pet daily necessities. In June 2024, the customer invested $210,000 to build a 10,000 t/a tofu cat litter production project using the existing production workshop.

The cat litter production workshop of this project is divided into semi-finished product area, production area and finished product area from west to east.

The entire plant area meets the principles of clear and reasonable functional zoning, compact layout, land saving and conducive to production. The labor quota of this cat litter production line project is 10 people, the project works 300 days a year, one shift a day, and each shift works 8 hours.

RICHI MACHINERY

Construction content

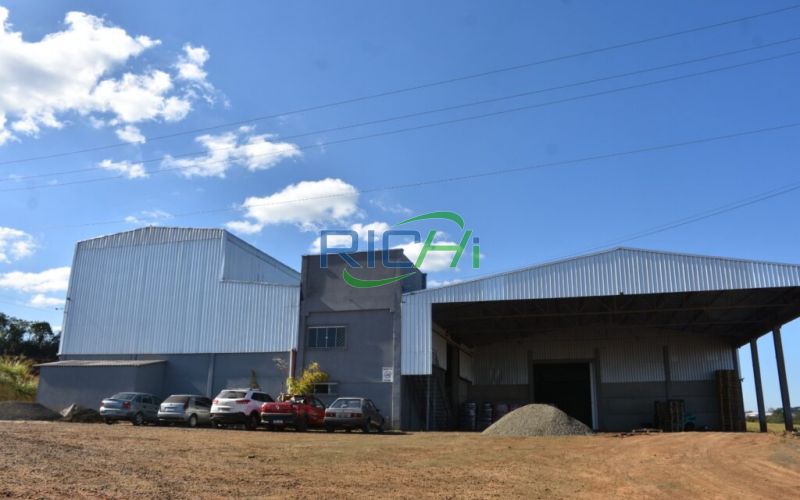

This tofu cat litter production line in Italy project uses the completed factory building. The specific construction content is shown in the table below.

Category	Item	Construction Content
Main Engineering	Cat litter production workshop	1, steel structure, 1F, building area 1000m2, with raw material warehouse, production area and finished product area. A cat litter production line is set up in the production area
Public Engineering	Heating	Provided by local pipeline network
	Power supply
	Water supply
	Drainage	Adopt rainwater and sewage diversion drainage system
Environmental Protection Engineering	Waste gas	Dust generated in the feeding process is collected by the hood and then led to the bag filter for treatment, and discharged through a 15-meter high exhaust pipe; dust not collected by the hood and dust generated by material stacking are discharged unorganized
	Wastewater	Domestic sewage is degraded in the septic tank and discharged into the municipal sewage network
	Noise	Low-noise equipment is selected, and noise reduction and sound insulation measures are taken
	Solid waste	Domestic garbage is regularly removed by the sanitation department after being bagged; dust collected by the bag filter is reused in production; waste woven bags are collected and sold for disposal.

RICHI MACHINERY

Main equipment for tofu cat litter production line in Italy

The main cat litter making machines of this tofu cat litter production line in Italy project is shown in the table below:

No.	Equipment Name	Equipment Model	QTY	Remarks
1	Circular Tube Screw Conveyor	TL20(Ф219)	1	Length about 4.5m; including feed hopper and manual insert plate, belt drive.
2	Cyclone dust collector and dust bag	ø400	2	Made of galvanized sheet;
3	Single-shaft ribbon mixer	SLHY2	1	Effective volume 1m³; mixing time 3-6min; 0.5 tons/batch; manual discharge; with atomizing nozzle
4	Round screw conveyor	TL20(Ф219)	1	Length about 6m; with feed hopper and manual plug plate, belt drive.
5	Permanent magnetic flow tube	/	1	High-strength magnet for iron removal, made of 3mm±0.25/Q235 plate.
6	Pelletizing bin	2m³	1	Material: -3mm/Q235.
7	Arch breaker	/	1	/
8	High material level device	/	1	Rotary resistance type
9	Cat litter pellet machine	HKJ300	1	Carbon steel feeder, conditioner; belt drive. This machine has 1 ring die and 2 rollers
10	Cyclone dust collector	Ф500	1	Material: -2mm/Q235.
11	Air blocker	GLF.5	1	The rotor and the housing fit tightly, and the air blocking effect is good.
12	Blower	4-72	1	The rotor has been dynamically balanced.
13	Skirt belt conveyor	PDZ500	1	The length is determined according to the customer’s dryer feed port
14	Dryer	/		Electric heating
15	Skirt belt conveyor	PDZ500		The length is determined according to the customer’s dryer outlet and cooler height
16	Counterflow slide valve cooler	SKLN11×11	1	Including 7L air lock for feed; slide valve structure; cooling time 6-15min, cooling to room temperature +3-5℃
17	Blower	4-72-3.6A	1	The rotor is dynamically balanced.
18	Cyclone dust collector	Ф700	1	Material: -2mm/Q235.
19	Air blocker	GLF.5	1	The rotor and the shell fit tightly, and the air blocking effect is good.
20	Vibrating screen	SFJZ80×1	1	The box body is made of 3mm/Q235 plate, and the frame is made of 8# channel steel.

RICHI MACHINERY

Main raw and auxiliary materials

The main raw and auxiliary materials and power consumption of this tofu cat litter production line in Italy project are shown in the table below.

No.	Raw and auxiliary materials	Consumption	Remarks
Main raw and auxiliary materials
1	Tofu fiber	3500t/a	Purchased
2	Corn	4500t/a	Purchased
3	Starch	1500t/a	Purchased
4	Guar gum	500t/a	Purchased
Energy consumption
1	Water	520m3/a	Local water supply network
2	Electricity	100,000 kWh/a	Local power supply network

Guar gum:

Cationic guar gum is a water-soluble polymer, and its chemical name is guar gum hydroxypropyl trimethyl ammonium chloride. It uses natural guar gum as raw material, and the endosperm part left after removing the epidermis and germ mainly contains galactose and mannose. It is dried, crushed and pressurized to hydrolyze enough to precipitate with 20% ethanol solution, centrifuged and dried, and then reacted with dehydrated trimethyl ammonium chloride. All guar gum in this project is food grade guar gum.

RICHI MACHINERY

Production process design of Italian tofu cat litter project

Brief description of the process flow of this tofu cat litter production line in Italy project:

The raw tofu fiber, corn starch, water, guar gum and water are sent to the mixer in a certain proportion through the feeding agitator (closed type) and mixed and stirred, and then flow into the silo from the bottom outlet; it is lifted and transported into the pelletizer through the silo agitator; it is made into strip-shaped particles by the cat litter pelletizer.

At this time, the particles are soft and hydrated, and are transported to the drying box unit by the chain conveyor for drying. The drying unit uses electric energy for heating; after drying, it is cooled by an air-cooled mesh chain and transported to a closed vibrating screen for screening.

The powder is screened by the lower screen and taken out from the bottom outlet regularly for recycling. It is then cooled and transported to an automatic packaging machine for packaging and production.

RICHI MACHINERY

Public supporting projects

(1) Water supply

The water source for this tofu cat litter production line in Italy project is tap water. The production water for the project is mixing water, with a water volume of about 400m3/a. The labor quota for this project is 10 people, with 300 working days per year. The water consumption is calculated at 40L/d·person, so the domestic water consumption is 120m3/a.

(2) Drainage

Part of the production mixing water evaporates, and part enters the product without being discharged. The domestic sewage generation coefficient is calculated as 0.8, so the domestic sewage generation volume is 96m3/a, and the main pollutants are COD and ammonia nitrogen. After being treated in a septic tank, the domestic sewage enters the sewage network.

(3) Power supply

The annual power consumption of this tofu cat litter production line in Italy project is 100,000 kWh/a. The power is drawn from the local power supply network. The power supply is sufficient to meet the needs of project construction and production.

(4) Heating and ventilation

The workshop of this project is not designed for heating. The ventilation in the workshop adopts a combination of forced ventilation and natural ventilation.

If you are interested in our tofu cat litter production line in Italy project, feel free to contact RICHI MACHINERY to customize the production line process plan and equipment configuration plan for free, and design civil engineering, equipment layout and other plans according to your factory.
