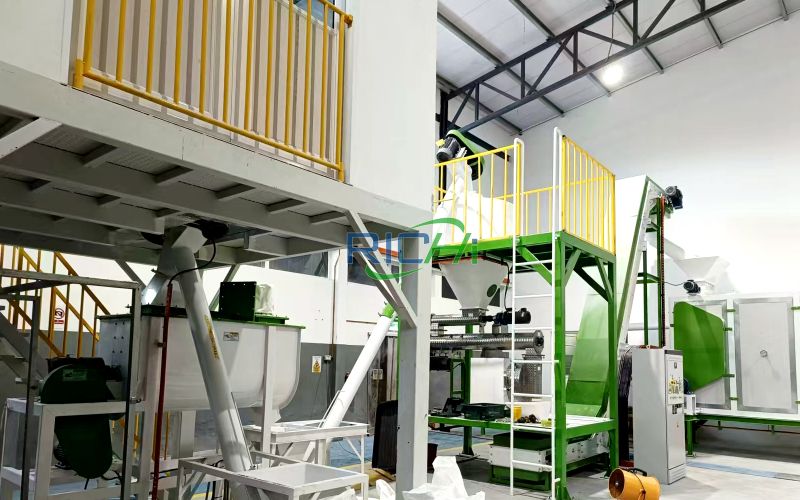

Tofu Cat Litter Making Machine Plant In Indonesia

RICHI MACHINERY

overview

This is a tofu cat litter making machine plant in Indonesia project. The client is a biotechnology company from Indonesia, established on July 29, 2016. The business scope includes scientific research and development, promotion and consulting of sanitary products; production and sales of pet products and disposable sanitary products; import and export of goods and technology.

This project uses the existing site, covers an area of ​​4000m2, of which the plant building area is 3000m2. The project invests 220,000 US dollars to build a 25,000 tons/year pet cat litter processing project.

The main raw materials of the tofu cat litter making machine plant in Indonesia project are soybean fiber, starch, cornmeal, etc. The production process is mainly feeding, mixing, granulation and drying. The production equipment is mixer, granulator, natural gas drying box, etc.

The power supply of this project comes from the local municipal power grid. The power supply is sufficient to meet the needs of the project, and the annual power consumption is about 3.8 million kW·h.

The cat litter production line project has a labor quota of 30 people, with a three-shift work system, each shift working 8 hours, and 300 working days per year.

RICHI MACHINERY

Project composition

The construction content of this tofu cat litter making machine plant in Indonesia project is shown in the table below.

Engineering classification	Construction content
Main engineering	Production workshop	Covering an area of ​​about 1700m2, purchasing equipment such as mixers, pellet machines, and natural gas drying boxes, mainly for cat litter processing
	Packaging workshop	Covering an area of ​​about 300m2, mainly for finished cat litter packaging
Auxiliary engineering	Office	Covering an area of ​​about 20m2, located in the office building in the compound, used for daily office
Storage and transportation engineering	Raw material area	Covering an area of ​​about 700m2, located on the southeast side of the plant, used for raw material storage
	Finished product area	Covering an area of ​​about 268m2, located on the southwest side of the plant, used for finished product storage
	Hazardous waste temporary storage room	Located in the northwest corner of the plant, covering an area of ​​12m2, used for temporary storage of hazardous waste

RICHI MACHINERY

Product plan

The main product of this tofu cat litter making machine plant in Indonesia project is pet tofu cat litter. The product plan is shown in the table below.

No.	Product	Annual output (tons/year)
1	Cat litter	25000

RICHI MACHINERY

Raw and auxiliary materials and consumption

The raw and auxiliary materials used in this tofu cat litter making machine plant in Indonesia project are shown in the table below.

No.	Raw material name	Annual usage	Maximum storage capacity	Storage location	Packing specifications
I. Main raw and auxiliary materials
1	Soybean fiber	8750t/a	105t/a	Raw material area	25kg/bag
2	Starch	9922.678t/a	120t/a	Raw material area	1t/bag
3	Corn flour	2500t/a	30t/a	Raw material area	25kg/bag
4	Guar gum	1250t/a	15t/a	Raw material area	25kg/bag
5	Adhesive	2500t/a	30t/a	Raw material area	25kg/bag
6	Fragrance	0.5t/a	1t/a	Raw material area	5kg barrel
7	Engine oil	0.05t/a	0.05t/a	Raw material area	25kg/barrel
2. Energy consumption
1	Water	1360t/a	/	/	/
2	Electricity	3.8 million kW·h/a	/	/	/
3	Natural gas	200,000 m3/a	8.8 m3	Pipeline transportation	/

The physical and chemical properties of the main raw and auxiliary materials of this tofu cat litter making machine plant in Indonesia project are as follows:

Soybean fiber: Soybean fiber is a new type of regenerated plant protein fiber made from degreased soybean meal, extracted from plant globulin and synthesized. Soybean fiber powder is rich in nutrients such as protein, amino acids, vitamins, minerals, etc.

Starch: Starch is a high-molecular carbohydrate composed of glucose molecules. At 70℃~90℃, the main evaporation of starch is water. At 120℃~130℃ and under certain time conditions, the water content in starch will gradually decrease until it is completely evaporated.

Cornmeal: Cornmeal is a flour made from corn. It contains carbohydrates, proteins, fats, cellulose, vitamins and minerals. Starch is the main component of cornmeal.

Guar gum: Guar gum is a water-soluble polymer. Its chemical name is guar gum hydroxypropyltrimethylammonium chloride. It is mainly made from natural guar gum after a series of treatments and mainly contains galactose and mannose.

Binder: The ingredient is corn starch, which is mainly used to increase the strength and adhesion of cat litter, improve the adsorption capacity of cat litter and improve the deodorization performance of cat litter.

Flavor: The flavor used in this project is edible flavor. Edible flavor refers to the fragrance of natural food. Natural flavors and synthetic flavors are carefully blended to form flavors with natural flavors.

RICHI MACHINERY

Main equipment for Soybean fiber:

The main cat litter making machines list of this Soybean fiber: project is shown in the table below.

No.	Equipment Name	QTY	Purpose
1	Screw Conveyor	6	Raw Material Conveying
2	Mixer	6	Enclosed, mixed raw materials
3	Bucket Elevator	6	Lifting materials
4	Cat litter pellet machine	3	Pelletizing
5	Natural gas drying box	3	Drying
6	Natural gas heating box	3	Provide heat for drying process
7	Screening machine	2	Screening
8	Crusher	3	Crushed particles
9	Packaging machine	4	Product packaging
10	Carton sealing machine	3	Finished product carton sealing
11	Transmission equipment	9	Finished product transportation
12	Bag dust collector	2	Waste gas treatment
13	Centrifugal fan	1	Waste gas collection
14	Induced draft fan	1	Waste gas collection

RICHI MACHINERY

Indonesian cat litter project production process design

Brief description of the production process of the tofu cat litter making machine plant in Indonesia project:

1.Feeding:

The raw materials of this tofu cat litter making plant in Indonesia project include soybean fiber, starch, cornmeal, guar gum, and adhesive. After the raw materials are purchased, they are transported to the raw material area by road.

The packaging bags are opened manually and thrown into the discharge port according to a certain proportion. The raw materials are sent to the mixer through a sealed conveying device.

2. Mixing:

This process mainly mixes raw materials such as water, soybean fiber, starch, cornmeal, guar gum and adhesive. The mixer is a closed device.

3. Granulation:

The semi-finished products produced by the mixer are transported from the bottom discharge port to the cat litter pellet machine through the elevator, and the pellet machine is made into long strips of pellets.

The pellet machine is fully closed during operation, and the pellets are soft and hydrated at this time without generating dust.

4. Drying:

Since the raw materials contain a certain amount of moisture, the semi-finished cat litter pellets produced in the granulation process need to be dried. The semi-finished cat litter pellets are transported to the belt dryer machine by the conveying equipment.

The drying temperature is 100℃~120℃. The drying heat source uses natural gas, which is transported by pipeline. The heated hot air enters the drying box through the air duct and adopts direct drying.

5. Screening:

After drying, it is cooled by air-cooled mesh chain and transported to the screening machine for grading and screening. Small particles of cat litter are screened by the lower screen and collected from the bottom outlet and sold as defective products.

The finished pellets are then transported to the finished product silo by the conveying equipment. The unqualified products are crushed by the crusher and reused. The screening process is carried out in a closed screening machine.

6. Crushing:

The unqualified products produced after screening are transported to the crushing area and crushed by the crusher and reused as raw materials.

7. Packaged finished products:

The moisture content in the finished cat litter is about 8%, and it is in the form of long strips of particles.

RICHI MACHINERY

General layout

The layout of the tofu cat litter making machine plant in Indonesia project is divided into production workshop, packaging workshop, raw material area, finished product area, office and hazardous waste temporary storage room.

• Production workshop: covers an area of ​​about 1700m2, purchased mixer, pellet machine, natural gas drying box and other equipment, mainly for cat litter processing.
• Packaging workshop: covers an area of ​​about 300m2, mainly for finished cat litter packaging.
• Raw material area: covers an area of ​​about 700m2, located on the southeast side of the plant, used for raw material storage.
• Finished product area: covers an area of ​​about 268m2, located on the southwest side of the plant, used for finished product storage. Office: covers an area of ​​about 20m2, located on the southwest side of the plant, used for finished product storage.
• Hazardous waste temporary storage room: located in the northwest corner of the plant, covers an area of ​​12m2, used for temporary storage of hazardous waste.

This tofu cat litter making machine plant in Indonesia project sets up two exhaust pipes on the north side of the plant. Exhaust pipe DA001 is equipped with a centrifugal fan and bag dust collector near the feeding and mixing area to collect dust generated by the feeding and mixing process;

Exhaust pipe DA002 is equipped with an induced draft fan, high temperature resistant bag dust collector, water cooling system and secondary activated carbon adsorption device near the drying and screening area to collect waste gas generated by the drying and screening process.

The plane layout fully considers the requirements of the production process and the conditions of the plant. Each link is compactly connected, and the material transportation distance is short, which is convenient for energy saving and consumption reduction, and improves production efficiency.

At the same time, the production environment in the workshop is considered, and the nearby environment outside the workshop is also taken into account.

The overall plane layout of this tofu cat litter making machine plant in Indonesia project area complies with the relevant national regulations and requirements, and can meet the needs of production transportation, safety, sanitation, fire protection, etc. The overall plane layout is reasonable and compact, coordinated and unified, and saves land.

If you are interested in our tofu cat litter making machine plant in Indonesia project, feel free to contact RICHI MACHINERY to customize the production line process plan and equipment configuration plan for free, and design civil engineering, equipment layout and other plans according to your factory.
