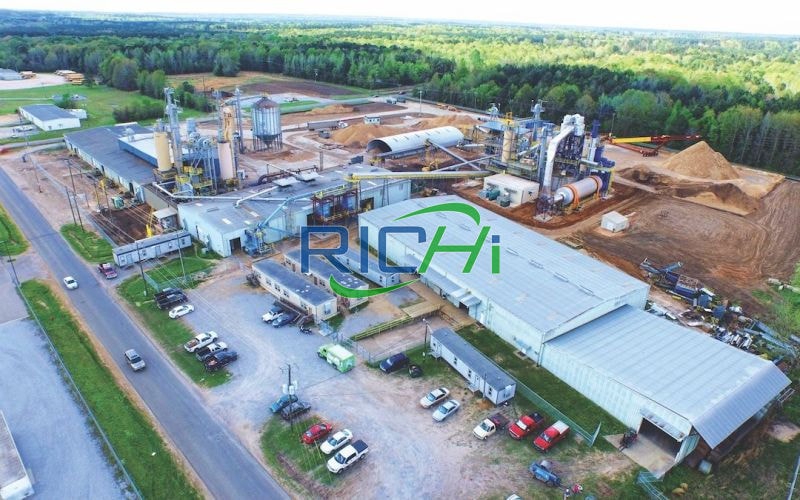

Straw Pellet Factory In Russia

RICHI MACHINERY

overview

This is a 6-7t/h straw pellet factory in Russia project. There are a lot of straw raw materials around the customer company.

According to market research, the customer decided to invest 390,000 US dollars to build a biomass pellet fuel project with an annual output of 45,000 tons. It mainly collects straw raw materials from the surrounding area to press straw pellets.

Straw pellet fuel uses solid waste such as corn stalks, wheat straw, rice straw, sunflower seed shells, peanut shells, corn cobs, cotton stalks, soybean stalks, weeds, branches, leaves, sawdust, bark, tea seed shells, etc. as raw materials.

After crushing, pressurizing, densifying, and molding, it becomes a modern clean fuel in the shape of small stick-shaped solid particles. It is also an emerging biomass power generation fuel that can replace traditional coal.

The straw pellet factory in Russia project has 50 employees. The working system is a two-shift system, working 20 hours a day, and the annual working time is 350 days.

RICHI MACHINERY

Project construction content and production scale

This straw pellet factory in Russia project covers an area of 7337m2 and a total construction area of 7300m2. It mainly constructs 1 drying yard, 3 production workshops, 1 office building, guard room, power distribution room, employee shift dormitory and other supporting facilities.

Purchase biomass straw pellet machine, double screw auger, crusher and other production equipment for production.

After the straw biomass pellet plant project is completed and put into production, it can reach an annual production capacity of 45,000 tons of biomass energy pellet fuel. The construction composition of this project is detailed in the table below:

No.	Engineering Category	Single Engineering Name	Engineering Content	Engineering Scale
1	Main Engineering	Production Workshop	8 Biomass Straw Pellet Machines, 2 Double Screw Augers, 8 Cooling Fans, 18 Crusher	Annual Production of 45,000 Tons of Biomass Energy Pellet Fuel, Building Area 800m2
2	Auxiliary Engineering	Drying yard	Straw drying	Building area 1000m2
		Office	Staff office	Building area 800m2
		Gate guard	/	Building area 80m2
		Power distribution room	Power supply for the factory	Building area 100m2
		Employee shift dormitory	Temporary rest for employees	Building area 520m2
		Canteen	Temporary dining for employees	Located on the first floor of the employee shift dormitory
3	Storage and transportation engineering	Raw material warehouse	Temporary storage of raw materials	Building area 2000m2
		Finished product warehouse	Temporary storage of products	Building area 2000m2
4	Public Engineering	Water supply	Local municipal water supply network	Annual water consumption 2250m3
		Drainage	The canteen wastewater generated by the project is pre-treated in the grease trap and discharged into the underground sewage treatment facility together with domestic sewage	Annual drainage 1932m3
		Power supply	Local municipal power grid	Annual electricity consumption is about 34,000 kWh
		Fire protection system	Complies with the “Building Fire Protection Code”

RICHI MACHINERY

Main equipment for straw pellet factory in Russia

The main equipment used in this straw pellet factory in Russia project is shown in the table below:

No.	Equipment Name	Model	QTY
1	Straw Crusher	YT-4JZ2000	1
2	Biomass Straw Pellet Machine	9SKLJH470-470C	8
3	Double Screw Auger	DLSJ300	2
4	Bag Dust Collector	DLXF0909	1
5	Cooling Fan	/	8
6	Automatic Baler	/	1

RICHI MACHINERY

Main raw and auxiliary materials

The main raw and auxiliary materials of this straw pellet factory in Russia project are detailed in the table below:

No.	Name	Consumption	Remarks
1	Wheat straw	30,000 tons/a	Purchased locally
2	Rice husk	6,000 tons/a
3	Corn stalk	10,000 tons/a

RICHI MACHINERY

Products and production scale

The main product of this straw pellet factory in Russia project is biomass energy pellets, and its product plan is shown in the table below.

No.	Product Name	Annual Output	Product Quality Standard
1	Biomass Energy Pellets	45,000 tons	Diameter 6~8mm; Length: 30~50mm. Density: 700~1400 kg/m3; Ash: 1~20%; Moisture ≤15%. The calorific value of straw-molded fuel blocks varies with the type of straw, and the calorific value is about 3200~4500Kcal/Kg. The burnout rate of biomass fuel can reach 96%, and the remaining 4% of ash can be recycled as potash fertilizer.

RICHI MACHINERY

Russian straw pellet production process design

The biomass pellet fuel of this straw pellet factory in Russia project uses various crop straws, husks, etc. as raw materials. The production process consists of raw material crushing, granulation, cooling, etc. At the same time, each part is equipped with a strict quality monitoring system to ensure the quality of the product.

Process description of this straw pellet factory in Russia project:

1. Raw materials

The raw materials of this project come from wheat straw, husks, corn stalks, etc. in the surrounding rural areas. The purchased baled straw is transported to the factory area and temporarily stored in the raw material warehouse in the project area.

The purchased bundled straw is sent to the workshop warehouse by loaders, forklifts, etc., and manually loaded and unloaded to the conveyor. The straw conveyor adopts a closed structure. Some raw materials with higher moisture content will be dried in the drying yard before use.

2. Crushing

Wheat straw and corn stalks are crushed by crushers. They can be granulated only after crushing. The raw materials after crushing are less than 5mm.

3. Pellet forming

The biomass fuel pellet machine is a key equipment of the straw biomass pellet production line. The biomass pellet making machine can be used for different raw materials such as rice and wheat straw, sawdust, corn straw, bean straw, cotton straw and peanut shells, and the equipment runs stably.

The density of the processed pellet fuel can reach 0.7-1.4 tons/cubic meter. The crushed material is sent to the elevator receiving hopper through a conveyor, and the material is sent to the feeder on the top of the pelletizing and briquetting machine through a bucket elevator.

The feeder evenly sends the material to the pelletizer, and the surface of the pellets produced is smooth and the hardness is moderate. Friction between the material and the roller and the template in the pelletizer can generate a lot of heat, which can heat the material to about 80-110℃, soften the lignin, and sterilize it.

4. Cooling

When the pelletizing and molding material is discharged, the temperature of the biomass pellet fuel is as high as 80-90℃, the structure is relatively loose, and it is easy to break. It must be cooled by the air cooling system and cooled to room temperature before it can be bagged and stored.

The pellets are sent to the cooler for cooling via a belt conveyor. The moving chain plate drives the pellets to move. There is an air inlet at the bottom and a fan at the top. The cooling is completed after 2-3 minutes. The cooling process is completed inside the biomass pellet machine. The pellet machine is closed and does not produce dust.

5. Packaging and warehousing

This design uses a packaging conveyor for metering and belt packaging, and sends it to the finished product warehouse.

RICHI MACHINERY

Public works

(1) Water supply

The water consumption of this straw pellet factory in Russia project is 2415m3/a. The water source of this project comes from the local municipal water supply network, which is mainly used as a water source for production, life and fire emergency, and can fully meet the requirements of this project.

(2) Drainage

The drainage system of the factory area adopts a rainwater and sewage diversion system. Rainwater is discharged into the municipal engineering rainwater network nearby. This project does not generate production wastewater.

The wastewater is mainly domestic sewage of employees and canteen wastewater. The canteen wastewater generated by the project is pre-treated in the grease trap and then discharged into the underground sewage treatment facility together with domestic sewage for treatment. The drainage volume of this project is 1932m3/a.

(3) Power supply

The electricity used in this straw pellet factory in Russia project is supplied by the local substation, which outputs 380V production power and 220V office and life electricity.

(4) Fire protection

The fire protection design of the building of this straw pellet plant project is based on the “Code for Fire Protection Design of Buildings”.

If you are interested in our straw pellet factory in Russia project, feel free to contact RICHI MACHINERY for free customization of production line process solutions, equipment configuration solutions, and design of civil engineering, equipment layout and other solutions according to your plant.
