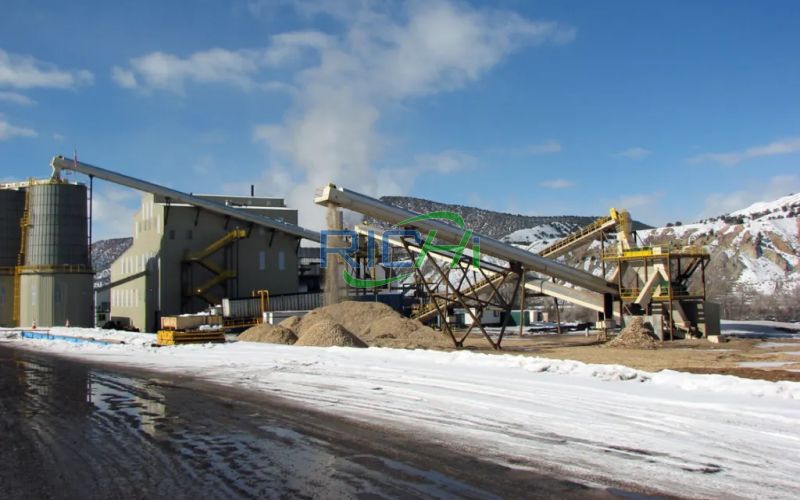

Straw Pellet Manufacturing Plant In Australia

RICHI MACHINERY

overview

This is a straw pellet manufacturing plant in Australia project with an output of 8 tons per hour.

In view of the wide range of uses of biomass pellets, the production project has a very broad prospect. The client of this project, an energy technology company, uses idle factory buildings to produce and sell biomass pellets. The total investment in equipment for this project is US$430,000, and the land area is 13,052.3 square meters.

The main structures include comprehensive production workshops, finished product warehouses, office buildings and other supporting facilities, and the annual output of biomass is expected to be 20,000 tons.

The labor quota of this straw pellet plant in Australia project is 11 people, and the staff do not eat and live in the factory area. The annual working days are 300 days, and the production shift system is 1 shift, 8 hours per shift.

RICHI MACHINERY

Construction scale

The straw pellet manufacturing plant in Australia project covers an area of 13,052.3m2 (most of which are idle land and vegetation); the main construction content includes production workshops, raw material warehouses, finished product warehouses and supporting facilities. Build 1 biomass fuel production line. Annual output of biomass fuel is 20,000 tons.

Engineering name	Construction content	Scale
Main Engineering	Production workshop	Single-story brick-concrete structure, building area of ​​500m2, crushing area is located on the west side of the production workshop; crushing area is located on the east side of the production workshop; granulation area is located on the north side of the production workshop
Storage And Transportation Engineering	Raw material warehouse	Single-story brick-concrete structure, building area of ​​250m2, used for raw material storage, located on the east side of the factory
	Finished product warehouse	Single-story brick-concrete structure, building area of ​​600m2, used for finished product storage, located on the west side of the raw material warehouse
Auxiliary Engineering	Office Building	Double-layer brick-concrete structure, building area 600m2, office area, located on the west side of the factory
	Water Supply System	Local Water Supply Network
	Power Supply System	Local Power Grid Power Supply
	Drainage System	Rainwater and sewage are separated, rainwater is collected in drainage ditches and discharged, and domestic sewage is treated in four purification tanks and used as agricultural fertilizer

RICHI MACHINERY

Production scale

The straw pellet manufacturing plant in Australia project produces biomass pellet fuel with an annual production capacity of 20,000 tons.

No.	Product Name	Annual Output (t)	Specifications	Packaging Specifications
1	Biomass Pellets	20000	Pellets, diameter 8-10mm, length 20-50mm, high calorific value 3450-4200kcal/kg, moisture content 12~18%, density > 1.12kg/m3, ash content < 1.5%.	Mainly in bags and 10kg packaging

RICHI MACHINERY

Consumption of main raw and auxiliary materials

The consumption of main raw and auxiliary materials for this straw pellet manufacturing plant in Australia project is shown in the table below.

No.	Item	Packaging Method	Storage and Transportation Method	Annual Usage (t)
1	Straw	Solid	Bulk Truck Transport	6000
2	Rice Husk	Solid	Bulk Truck Transport	6000
3	Waste Board (mainly Wood Board)	Solid	Bulk Truck Transport	8000
4	Water	/		148.5m3
5	Electricity	/		40kwh

Raw material requirements: moisture content ≤20, no impurities such as gravel, iron filings, mud, plastic, etc., sulfur content of waste gas plate ≤0.08.

RICHI MACHINERY

Main equipment

The main production equipment of this straw pellet mill plant project is shown in the table below.

No.	Equipment Name	QTY
1	Biomass Pellet Mill	4
2	Biomass Crusher	3
3	Slicer	1
4	Bag Dust Collector	1
5	Belt Conveyor	2

Note: This straw pellet manufacturing plant in Australia project does not have a boiler.

RICHI MACHINERY

Australia Straw Biomass Pellets Production Process

Brief description of the process flow of this straw pellet manufacturing plant in Australia project:

1. Feeding:

Purchase dry straw, husks, etc. as required. Raw material requirements: low moisture content, no impurities such as crushed stone, iron filings, mud, plastic, etc., so dust will be generated during the unloading process.

2. Crushing and pulverizing:

Load the material from the loader to the sealed conveyor line, and transport it to the crusher through the belt for crushing to obtain crushed material with larger particle size.

An iron removal device is installed at the outlet of the crushed material to remove impurities such as iron in the crushed material (waste board).

The crushed material is loaded from the loader to the belt conveyor to the crusher for crushing to obtain crushed material with a particle size of <10mm. The crushed material is sent to the closed warehouse for storage through a closed conveyor belt.

3. Pellet forming:

The pelletizer is the key equipment of the biomass shaped fuel production line. After the crushed raw materials pass through the straw pellet machine in a closed environment, straw fuel pellets with a diameter of 8mm and a length of 20-40mm are formed.

4. Packaging:

The straw pellet products after pressing and forming are packaged and transported to the finished product warehouse.

RICHI MACHINERY

Project General Plan Layout

The plant area of this straw pellet manufacturing plant in Australia project is divided into production area and office area. The office area is located on the west side of the plant area, and the production area is located on the east side of the plant area.

The production area is divided into raw material warehouse, finished product warehouse, pelletizing workshop and crushing and crushing workshop.

The raw material warehouse is located on the easternmost side of the production area; the finished product warehouse is located on the west side of the raw material warehouse.

The pelletizing workshop is located on the north side of the finished product warehouse, and the crushing and crushing workshop is located on the south side of the finished product warehouse.

If you are interested in our straw pellet manufacturing plant in Australia project, feel free to contact RICHI MACHINERY to customize the biomass pellet production line process plan and equipment configuration plan for free, and design civil engineering, equipment layout and other plans according to your plant.
