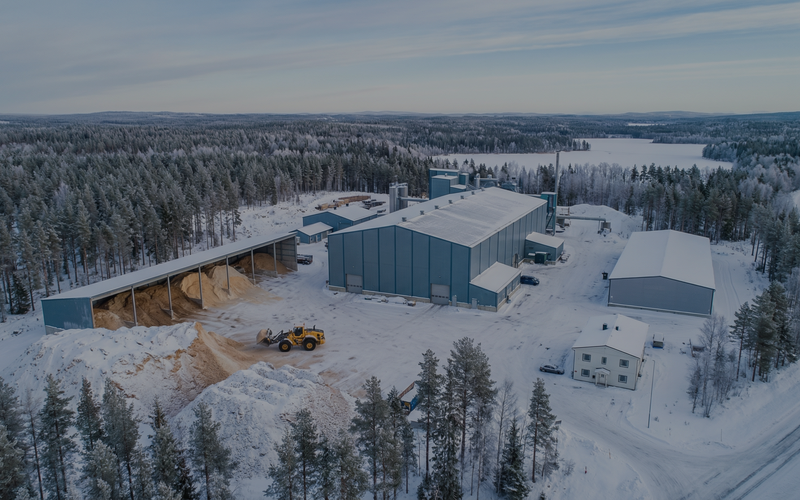

Biomass Pellet Plant Investment in Sweden

RICHI MACHINERY

The Investment Decision – Why Sweden

The client had been running a sawmill operation in Värmland for over twenty years. He knew the Swedish pellet market intimately. Sweden has over 500,000 pellet heating systems installed. The country’s carbon tax (over $130/ton CO₂) makes biomass heating significantly cheaper than fossil fuels.

He saw three opportunities:

First: Sweden’s pulp and paper industry produces enormous quantities of sawdust and bark. Most of it is used internally, but there is still surplus available at competitive prices.

Second: The Norwegian pellet market is undersupplied. Norwegian consumers pay a premium for Swedish-made pellets.

Third: Large-scale pellet production (6-7 t/h) achieves economies of scale that smaller plants cannot match. Production cost per ton drops significantly above 4 t/h.

He had a building (6,500m²) on a 6,500m² site in an industrial area. He had existing grid connection, water, and rail access. He had raised $2.5 million from investors and bank financing.

His question to us in early 2023: “Can you design a 6-7t/h biomass pellet plant investment in Sweden that meets ENplus A1 standards and can export to Norway?”

We spent three months on the design. The key challenges: dust control at this scale (50,000 tons/year generates significant particulate matter), material handling (moving 50,000 tons of raw material and product), and emissions compliance (Sweden has strict limits).

RICHI MACHINERY

Raw Materials – Single Feedstock, Multiple Sources

The client set up supply agreements with five sawmills and two wood processing plants within a 150km radius.

The client pays per ton delivered. The raw material is clean – no paint, no glue, no chemicals. Swedish sawmills produce high-quality softwood chips (pine and spruce) with consistent moisture content.

Total input 50,000 tons, output 50,000 tons. The client achieves nearly 100% conversion because the incoming moisture is already at ideal levels (10-12% after storage). Minimal moisture loss. Dust collected (about 26 tons/year) is returned to the process.

The client also produces about 2 tons of waste packaging annually, which is recycled.

RICHI MACHINERY

Why No Dryer? (Key to Low Operating Costs)

Most large-scale pellet plants need dryers because sawdust arrives at 25-35% moisture. A dryer at this scale would cost $250,000-350,000 and consume enormous energy.

The client avoided this entirely by sourcing dry raw material.

How he did it:

• He only buys from sawmills that use kiln-dried lumber or air-dry their chips
• The wood chips arrive at 10-15% moisture – ideal for pelleting
• He stores material in covered bays (Maximum storage capacity 4,200 tons) to keep it dry

This 6-7t/h biomass pellet plant investment in Sweden has no dryer and no hot air furnace. The client saved $100,000 upfront and avoids ongoing fuel costs of about $50,000 per year.

RICHI MACHINERY

Equipment List – Industrial Scale

The client bought the wheel loaders and forklifts locally in Sweden – cheaper than importing, and local service is available.

RICHI MACHINERY

Facility Layout – 6,500m² Total

The client’s building was a former industrial facility on a 6,500m² site. Total built area 6,500m².

The client connected to the municipal sewer system for staff sewage (12 people, 130 m³/year). Wastewater is treated at the local municipal plant. No process wastewater.

RICHI MACHINERY

Process Flow – Fully Automated Industrial Line

Here’s how the 6-7t/h biomass pellet plant investment in Sweden actually runs.

Step 1 – Raw material receiving
Wood chips arrive by truck and are unloaded into the raw material storage area. The client stores about 4,200 tons – enough for 25-30 days of production. A wheel loader feeds material into the crusher as needed.

Step 2 – Crushing
Two crushers run in parallel. Each processes about 3.5 t/h. Output size: 10-20mm chips. The crushers are enclosed with dust collection hoods.

Step 3 – Cyclone separation
Crushed material passes through two cyclone separators. The cyclones remove coarse dust (about 60-70% of total dust load) before the material goes to the pellet mills.

Step 4 – Pelleting
Six 110kW wood pellet extruder machines run simultaneously. Each mill produces 1.0-1.2 t/h. Total output: 6.0-7.2 t/h. Die size: 6mm and 8mm – the client switches depending on customer requirements (6mm for residential, 8mm for industrial).

The pelleting process uses friction heat (100-120°C) to soften the lignin, which acts as a natural binder. No added binders or additives. The process is fully automated – a control room operator monitors mill performance, temperature, and throughput.

Step 5 – Screening
Pellets from all six mills are combined on a belt conveyor and fed into the screening machine. The screen removes fines (about 1-2% of output). Fines are returned to the process.

Step 6 – Storage and bagging
Pellets are either:

• Sent to the 500-ton finished product silo for bulk delivery (truck or rail)
• Bagged on the bagging machine into 15kg paper bags (retail) or 1,000kg bulk bags (industrial)

Step 7 – Dust collection
Two baghouse filters (total airflow 10,000 m³/hr) capture dust from the crushers, cyclones, and wood pellet maker machines. Collected dust (about 26 tons/year) is returned to the process. Exhaust stacks are 15 meters high – compliant with Swedish regulations.

RICHI MACHINERY

Emissions Compliance – Meeting Swedish Standards

Sweden has strict emissions limits under the Environmental Code (Miljöbalken). The client’s emissions:

Process dust (baghouse exhaust):

• Particulates: <5 mg/m³ (Swedish limit: 20 mg/m³)
• Collection efficiency: 99% on particles >0.1μm

Fugitive dust:

• Total fugitive dust: 0.2675 t/yr
• Settles inside the workshop (Workshop and factory buildings obstructing the view + its own gravity)

Wastewater:

• Domestic sewage only (129.6 t/yr)
• Treated at municipal plant

Solid waste:

• Collected dust: 26.24 t/yr ( returned to production)
• Waste packaging: 0.8 t/yr (recycled)
• Household waste: 1.84 t/yr (municipal collection)

The client also has general solid waste storage areas and works with licensed recyclers.

RICHI MACHINERY

The Swedish and Norwegian Pellet Markets

Sweden is Europe’s third-largest pellet producer (after Germany and Latvia), with annual production of about 1.6 million tons. The country has:

• A well-established ENplus certification system
• A carbon tax that makes biomass heating highly competitive
• A mature distribution network

Norway imports about 200,000 tons of pellets annually, mostly from Sweden. Norwegian consumers pay a premium of $40-60/ton for imported pellets due to domestic supply shortages.

The client’s customers:

• A Norwegian pellet distributor (1,500 tons/month)
• Swedish hardware stores (1,000 tons/month)
• Industrial customers in Värmland (the remainder)

The client plans to add two more pellet mills in 2026 to reach 8-9 t/h. He also plans to pursue rail delivery to Norway for lower logistics costs.

RICHI MACHINERY

What the Client Learned

We spoke with the client in July 2024, five months after startup. Here are his observations.

What worked well:

• No dryer. “Swedish sawdust is dry enough. I saved $300,000 and avoid fuel costs.”
• The six-mill configuration. “If one biomass pellet mill needs maintenance, I run five mills at 5-6 t/h. No lost production.”
• The automated control system. “One operator runs the whole line from a computer screen.”
• The baghouse filters. “Swedish inspectors approved the system on the first visit.”

What he would change:

• “I should have built more covered storage.” During wet months, incoming material can reach 15-18% moisture. He’s adding another 1,000m² of covered storage.
• “The bagging machine is too slow for 6 t/h.” He’s upgrading to a high-speed bagging line ($45,000).
• “I need a third baghouse filter.” The two units run at 95% capacity. He’s adding a third unit for redundancy.

RICHI MACHINERY

What We Provided

For this 6-7t/h biomass pellet plant investment in Sweden, we delivered:

• Process design – Full industrial-scale layout with automated controls.
• Equipment package – 2 crushers, 2 cyclones, 6 pellet mills, screening machine, bagging machine, conveyors, screw feeders, 2 baghouse filters, 2 exhaust stacks.
• Installation supervision – Our engineer spent 25 days in Värmland.
• Operator training – Two weeks on mill optimization, dust collector maintenance, and Swedish compliance requirements.
• Spare parts kit – Six spare dies (one per mill), bearings, belts, and filter bags.
• Automation integration – We helped the client integrate the control system with his existing sawmill operations.

RICHI MACHINERY

Thinking About Large-Scale Pellet Production in Sweden?

If you’re looking at a 6-7t/h biomass pellet plant investment in Sweden – or anywhere in Northern Europe – here’s what we’ve learned from this biomass pellet project:

• Dry raw material is worth the premium. The client pays $35/ton for dry chips instead of $20-25 for wet material. But he saves $300,000 on equipment and $50,000/year on fuel. The math works at scale.
• Automation is essential above 4 t/h. Manual operation is impossible at 6-7 t/h. Budget for a control system and trained operators.
• ENplus A1 certification is required for export. Norwegian and German buyers require it. Certification costs about $15,000 but increases revenue by 15-20%.
• Rail access is a competitive advantage. The client’s proximity to rail allows cost-effective shipping to Norway.
• Sweden’s carbon tax makes pellets competitive. At $130/ton CO₂, pellets are significantly cheaper than oil or gas for heating.

The client in Värmland is already profitable and expanding. If you have access to dry wood waste and a market for premium pellets, this model works at industrial scale.

Contact us for a site assessment or equipment quote. We can provide references from this project upon request.
