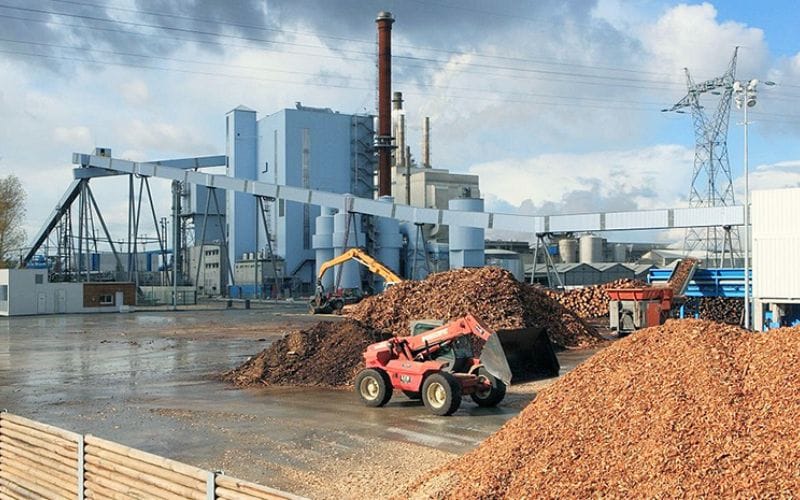

Biomass Pellet Manufacturing Plant In New Zealand

RICHI MACHINERY

overview

The biomass pellet manufacturing plant in New Zealand project was invested and built by an energy company.

The project covers a total area of 4986 square meters and a total construction area of 4640 square meters, including a new office building with two floors and a construction area of 240 square meters; a new steel structure plant with a construction area of 3640 square meters; a new steel structure warehouse with a construction area of 1000 square meters; and an access road. 70 meters long and 5 meters wide.

The biomass pellet manufacturing plant in New Zealand project purchased production equipment such as shredders, crushers, pellet machines, and screw conveyors to build a new biomass pellet machine production line, reaching an annual output of 20,000 tons of biomass molding fuel. The project has 10 employees, 330 days of production per year, 9 hours a day, and a one-shift system.

6-7T/h

capacity

$380,000

investment

New Zealand

location

Biofuel

project type

RICHI MACHINERY

Project construction content

The biomass pellet manufacturing plant in New Zealand project consists of main engineering, auxiliary engineering, environmental protection engineering, public engineering, storage and transportation engineering, etc. A new biomass pellet production line was built to achieve an annual output of 20,000 tons of biomass molding fuel.

Classification	Engineering composition	Production function	Construction content and scale
Main engineering	Raw material storage yard	Raw material storage	Occupies an area of 350m2
	Processing warehouse	Processing a series of materials such as purchased sawn wood shavings; recycling of processing waste	Arrangement of crushers, pulverizers, pellet machines, ground auger, material separation auger and other equipment. Building area 3640m2
	Material warehouse	Finished product storage	Building area 1000m2
Auxiliary engineering	Office building	Factory office building	1 building, building area 200m2
	Living area	Staff dormitory	1 building 2F, building area 240m2
	Road	Access road	70 meters long, 5 meters wide
Transportation engineering	Vehicle transportation	Transportation within the site is completed by belt conveyor and forklift; transportation outside the site is completed by truck
Public engineering	Power supply	Power supply through transformer
	Water supply	Tap water
Environmental protection engineering	Waste water	Oil-separating septic tank (volume 5m3)
	Waste gas	Crushing and pulverizing process: It is planned to install a gas hood + cyclone + bag dust removal + 15m exhaust pipe DA001 above the crushing and pulverizing process
		Pelletizing process: It is planned to install a gas collection hood + bag dust removal treatment above the pelletizing process, unorganized emission
	Noise	Factory sound insulation, production equipment foundation shock absorption, regular maintenance
	Solid waste	Domestic garbage: Handled by the local sanitation department;
		Dust collector dust: The dust collected by the dust collector is used as the raw material of biomass pellets.
		Waste oil: Build a temporary storage room for hazardous waste (building area 5m3), and entrust qualified units to dispose of it regularly.

RICHI MACHINERY

Product plan

The product plan for this biomass pellet manufacturing plant in New Zealand project is as follows:

No.	Product Name	Scale	Remarks
1	Biomass Pellets	20,000 t/a	Biomass Molded Solid Fuel

RICHI MACHINERY

Main raw and auxiliary materials and energy consumption

The main raw and auxiliary materials and energy consumption of this biomass pellet manufacturing plant in New Zealand project are as follows:

No.	Name	Annual Consumption	Source
1	Sawdust	4500t/a	Purchased, moisture content ≤20%
2	Shaving	4500t/a
3	Wood Scraps	4500t/a
4	Straw	4500t/a
5	Demolition materials	4500t/a
3	Electricity	600Kw·h/a	Transformer access
4	Water	330m3/a	Tap water

RICHI MACHINERY

List of main biomass pellets equipment

The list of main biomass pellet processing equipment used in this biomass pellet manufacturing plant in New Zealand project is as follows:

No.	Equipment Name	QTY
1	Biomass Pellet Mill	2
2	Wood chipper machine	1
3	Wood hammer mill	1
4	Material Dividing Auger	2
6	Ground Auger	3
7	Belt Conveyor	4
8	Floor Scale	1

RICHI MACHINERY

New Zealand biomass pellet production process

The biomass pellet processing process designed by us for this biomass pellet manufacturing plant in New Zealand project is as follows:

The raw and auxiliary materials of this project are mainly purchased sawn timber, shavings, straw, demolition materials, waste scraps, etc.

After being temporarily stored in the raw material area, it is conveyed to the crusher by a belt for crushing, and the crushed materials are sent to the crusher by a conveyor belt for crushing.

The crushed materials are naturally air-dried.

The air-dried materials are then extruded and granulated by a biomass fuel pellet machine. The crushed materials are fed into the extrusion bin of the biomass pellet making machine by the feed hopper, and the crushed materials are squeezed into the inner hole of the mold by the pressure roller. The hot extrusion molding of the mold generates heat during the extrusion molding process, which is about 40°C. The heat generated dries the moisture in the materials to meet the product requirements. The extruded materials are cut into cylindrical particles at the exit of the pellet machine. The whole process is physical extrusion molding without adding any binder.

The finished products coming out of the discharge port are naturally cooled and stored for sale.

RICHI MACHINERY

Reasonable layout

This biomass pellet manufacturing plant in New Zealand project is divided into production and processing plant, raw material area, finished product warehouse, office and living area. The production and processing plant is located on the north side of the factory. Crusher, pulverizer and other equipment are arranged in sequence according to the process flow. The pelletizing process is on the north side of the finished product warehouse to facilitate internal material transportation.

The finished product warehouse is located on the south side of the east side, next to the production and processing plant, close to the factory entrance and exit, convenient for transportation. The raw material area is located on the south side of the west side, the factory entrance and exit are located on the southeast side, and the living and office area is located on the southwest side of the factory, upwind of the local wind direction.

In summary, the overall layout of this project is basically based on the needs of the production process, and the site conditions are reasonably utilized. The material flow is smooth and short, and the functional division is clear. See Figure 2 for a schematic diagram of the project layout.

If you are interested in this biomass pellet manufacturing plant in New Zealand project and want to build your own biomass pellet plant, please feel free to contact RICHI MACHINERY to get a free biomass pellet production line construction plan, equipment quotation, process design and layout.
