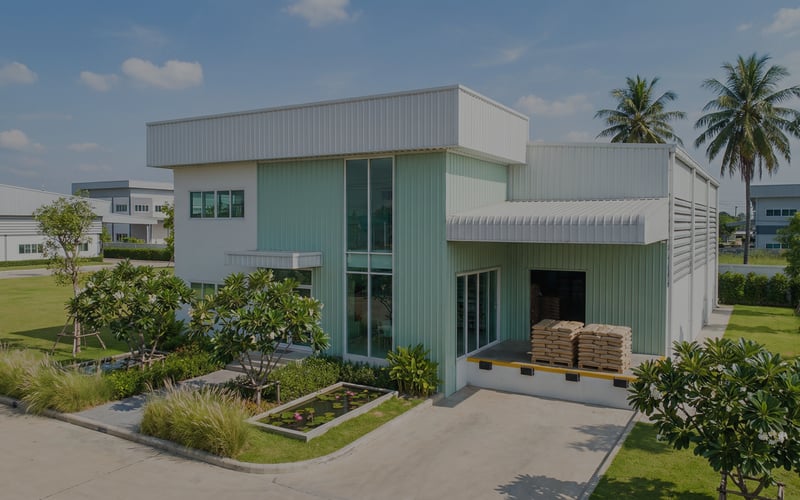

Biodegradable Cat Litter Production Line in Thailand

RICHI MACHINERY

Why Thailand? The Numbers Tell the Story

Thailand has about 3.5 million pet cats. That’s a lot. And the market is growing 8-10% per year. But here’s the thing – almost all cat litter is imported. Bentonite litter from China costs 40-50 baht per kg at retail (about $1.20-1.50). Silica gel is even more expensive.

The client’s calculation was simple. His production cost for plant-based litter would be around 12-15 baht per kg ($0.35-0.45). He could sell wholesale at 25-30 baht ($0.75-0.90) – cheaper than imported bentonite but still with good margin.

And the raw materials are everywhere. Thailand produces about 400,000 tons of soybeans annually. Tofu factories in Ratchaburi, Nakhon Pathom, and Bangkok generate hundreds of tons of okara every week. Most of it is waste. Some goes to animal feed at 2-3 baht per kg. He could buy it for 1 baht if he collected it himself.

Corn starch is also local. Thailand is a major tapioca and corn producer. Starch is cheap and available.

The client’s existing feed mill was already in an agricultural area. He had the building, the power connection, and the basic infrastructure. All he needed was the right equipment.

RICHI MACHINERY

Project Overview

Equipment investment (delivered to Thailand): $88,000 USD
Total project cost (including local installation, electrical, building modifications): $132,000 USD

The client funded this from his own savings plus a small loan from a local cooperative bank (7% interest). Payback period estimated at 14 months. At current sales volume, he’ll hit that in 11 months.

RICHI MACHINERY

Raw Materials: Turning Waste into Profit

The client uses five main ingredients, all sourced locally within 50 km of Ratchaburi:

Total raw material input: about 2,000 tons annually for the standard blend.

The okara is the key ingredient. But it comes wet – 70-75% moisture. The client’s original plan was to use it as-is, but that doesn’t work. Wet okara won’t flow through a hammer mill. We added a simple solar drying bed (the client built it himself for $2,000) – just a concrete pad with a clear plastic roof. Spread the okara out for 1-2 days in Thailand’s hot sun. Moisture drops to 15-20%. Then it’s dry enough to grind.

For the premium bamboo blend, the client imports bamboo powder from China. It’s expensive, but customers pay a premium for the “natural bamboo” marketing angle.

RICHI MACHINERY

Equipment Configuration: Small Footprint, Big Output

The client’s building was only 2,100 square meters – not huge. We had to fit everything in a compact layout. The equipment list is modest but complete:

The cat litter dryer is unusual for a small line, but it made sense here. The client had no natural gas connection, and diesel was expensive. Microwave drying is efficient for small volumes – about 0.8 kWh per kg of water removed. The 30 kW unit can dry 500 kg per hour of wet pellets. Enough for the 1 t/h line.

RICHI MACHINERY

Process Flow: Step by Step in a Small Factory

The client’s operators learned the process in about two weeks. Here’s how it runs.

Stage 1 – Raw Material Preparation

Okara arrives in 25 kg bags from tofu factories. Workers spread it on the solar drying bed for 24-48 hours (depending on sun). Dry okara is then ground in the hammer mill with a 2mm screen. Corn starch, rice flour, and corn flour are purchased already ground – they just go straight to the mixer.

Stage 2 – Batching and Mixing

The standard recipe for 1 ton batch:

• 500 kg dry okara
• 100 kg corn starch
• 150 kg rice flour
• 150 kg corn flour
• 50 kg calcium carbonate
• 50 kg water (added during mixing)

Mixing time is 8 minutes – longer than feed because the starch needs time to hydrate. The mixer is a ribbon type, gentle enough to not break the fibers.

Stage 3 – Pelleting

The mixed mash drops into the cat litter pellet machine. The MSZLH350 is a small ring die pellet machine – perfect for 1 t/h. Die size is 4mm for standard litter, 3mm for premium. The pellets exit at 75-80°C and 16-18% moisture.

Stage 4 – Primary Cooling

Hot pellets fall into the first counterflow cooler. Ambient air in Ratchaburi is about 30-35°C. Cooling takes 10 minutes. Pellets exit at 40-45°C, moisture 12-14%.

Stage 5 – Microwave Drying

This is the critical step. The belt dryer runs the pellets through a 3-meter tunnel. Dwell time is 8 minutes. Outlet moisture drops to 6-8%. Temperature at exit is 50-55°C.

Why so dry? Cat litter needs to be below 10% moisture to prevent mold. Thailand is humid – 70-80% RH. If the product isn’t dry enough, it absorbs moisture from the air during storage.

Stage 6 – Secondary Cooling

The second cooler brings the pellets down to within 5°C of ambient. This prevents condensation inside the bags.

Stage 7 – Screening

The vibrating screener separates pellets into three grades:

• Fine (1-2mm): For kittens and small cats
• Medium (2-4mm): Standard litter
• Coarse (4-6mm): Economy litter

Fines go back to the mixer. Overs go back to the hammer mill.

Stage 8 – Packaging

The client sells in 5kg, 7kg, and 10kg bags. The packaging machine fills, heat-seals, and date-codes. Manual palletizing for now – 40 bags per pallet.

RICHI MACHINERY

What We Had to Fix After Startup

Three problems that came up during the first month:

Problem 1: The microwave dryer was cooking the pellets unevenly.

The first batch had hot spots – some pellets were dark brown, almost burned. We adjusted the conveyor speed and added a material spreader at the dryer inlet. Now the pellets form a single layer (about 2 cm thick) and dry evenly. The client also installed a temperature probe at the dryer outlet linked to an alarm – if temp exceeds 65°C, the line stops.

Problem 2: Dust was getting into the cooling fans.

The cyclone (for the cooler exhaust) wasn’t catching all the fines. Dust was building up on the fan blades, causing imbalance. We added a second small baghouse after the cyclone. Cost $1,200. Problem solved.

Problem 3: The pellets were too hard.

The first batches had durability over 98% – that sounds good, but cat litter shouldn’t be rock hard. Hard pellets don’t absorb as well. We reduced the compression ratio on the pellet mill die (from 1:7 to 1:5.5) and reduced conditioning temperature from 85°C to 70°C. Durability dropped to 92-94% – perfect. Absorption improved by 20%.

The client’s first customer (a pet store in Bangkok) tested the product. Their feedback: “Clumps well, not too dusty, cats used it immediately.” That’s what he needed to hear.

RICHI MACHINERY

Quality Control: Simple but Effective

The client doesn’t have a fancy lab. But he runs basic tests every shift:

The clump test is the most important. He keeps a jar of the previous batch and a jar of the current batch. If the new batch doesn’t clump as well, he adjusts the binder (corn starch) upward.

RICHI MACHINERY

Environmental Compliance: Thailand’s Regulations

Thailand’s environmental laws (Enhancement and Conservation of National Environmental Quality Act, BE 2535) apply to all industrial facilities. For a small cat litter plant, the requirements are manageable.

Air emissions: The dust collector keeps stack emissions below 40 mg/m³. Thailand’s standard for general industry is 120 mg/m³. No issue.

Wastewater: The plant has no process wastewater. Water used in mixing goes into the product and evaporates during drying. Domestic sewage goes to a septic tank (existing from the feed mill). No discharge to surface water.

Solid waste: Empty bags are baled and sold to recyclers (about 500 baht per month). Dust collector fines (about 200 kg per week) go back to the mixer. General waste to municipal collection.

Noise: The pellet mill and hammer mill are the loudest. The building is concrete block – noise at the property line is about 55 dB. Thailand’s limit for industrial areas is 70 dB during daytime. He’s fine.

The client passed his initial inspection with the local Department of Industrial Works in November 2024. No violations.

RICHI MACHINERY

Market Reception: What Customers Are Saying

The client launched with three products under a new brand name (not sharing the name here). Distribution:

• 15 pet stores in Ratchaburi and Nakhon Pathom
• Online via Shopee Thailand
• A small deal with a veterinary clinic chain (3 clinics)

Customer feedback (translated from Thai):

“Much less dust than the Chinese bentonite litter I used before. My cat doesn’t sneeze anymore.”

“It clumps well enough. Not as strong as clay, but acceptable. And it’s half the price.”

“The bamboo blend smells like fresh wood. My wife likes it.”

The client told me his biggest surprise was repeat orders. He expected 30-40% repeat rate in the first three months. Actual repeat rate is 65%. Customers come back.

RICHI MACHINERY

What’s Next for the Client

The client has big plans for 2025:

Immediate (Q1 2025): Add a second shift. He’s hiring four more people. Output will double to 2 t/h (about 300 tons per month).

Mid-year (Q2 2025): Launch a flushable litter. He’s working with a local university on a formulation using only tapioca starch and bamboo fiber – no calcium carbonate, no corn starch. If successful, this could be exported to Singapore and Hong Kong.

End of year (Q4 2025): Add a second pellet mill. The current SZLH350 is running at 95% capacity during the day shift. He wants redundancy.

He’s also exploring export. Thailand’s cat litter market is growing, but neighboring countries – Cambodia, Laos, Myanmar – have almost no local production. The ASEAN Free Trade Area means zero import duties within Southeast Asia. His product could compete.

RICHI MACHINERY

Why RICHI for Your Small Cat Litter Line

We’ve built cat litter lines from 500 kg/h up to 10 t/h. The small lines are actually more challenging – you have to be careful with equipment sizing and capital cost.

What we offer for small producers:

• Low capital investment. Our 1 t/h line costs about $68,000 delivered. That’s affordable for someone converting an existing building or starting a side business.
• Simple operation. We design for easy maintenance. Standard motors, standard bearings, no proprietary parts.
• Material testing. We’ll test your local raw materials (okara, cassava, corn bran, whatever) in our lab before you buy anything. No surprises.
• Local support in Thailand. We have a service engineer based in Bangkok. Spare parts are stocked in Laem Chabang.
• Thai-language documentation. Control panel labels, manuals, safety signs – all in Thai and English.

Not what we do: We don’t sell you a pellet mill and hope it works. We design the whole line – from the bag dumper to the palletizer – and we stay until you’re making product you can sell.

RICHI MACHINERY

Thinking About a Similar Pivot?

The client in Ratchaburi is not a big company. He’s a former feed mill owner with a leased building and twelve employees. But he saw an opportunity and took it.

If you’re in a similar situation – struggling margins in animal feed, flour milling, or any agricultural business – consider cat litter. The pet care market is growing everywhere. The raw materials are cheap. The technology is proven. And you don’t need a million dollars to get started.

A 1 t/h biodegradable cat litter production line in Thailand can be profitable at surprisingly low volume. The client is proving it right now.

Send us your raw material samples. Tell us your building size and your budget. We’ll give you a real proposal – not a generic quote, but a line designed for your specific ingredients and your local market.

RICHI MACHINERY

Shipping and Logistics

All equipment for this project shipped from Qingdao Port, China. For Thailand, the nearest major port is Laem Chabang Port (near Bangkok). Shipping takes 7-10 days. From Laem Chabang, trucking to Ratchaburi takes about 3 hours. Total shipping cost for this project was $3,200 (one 20-foot container plus a small flat rack for the dryer).

The client handled customs clearance himself with help from a local broker. Total duty was about 5% (ASEAN-China FTA – Thailand and China have a free trade agreement). He paid 0% duty on the equipment because it qualified under the FTA rules. Worth checking if your country has a similar agreement with China.

RICHI MACHINERY

One Last Thing

The client called me last week. He said: “You know, six months ago I was thinking about closing the business. Now I’m hiring new people. The bank manager actually smiles when I walk in.”

That’s the kind of call I like to get.

If you’re ready to make the switch – or just want to explore the numbers – give us a shout. No pressure. Just straight talk from people who’ve done it.
